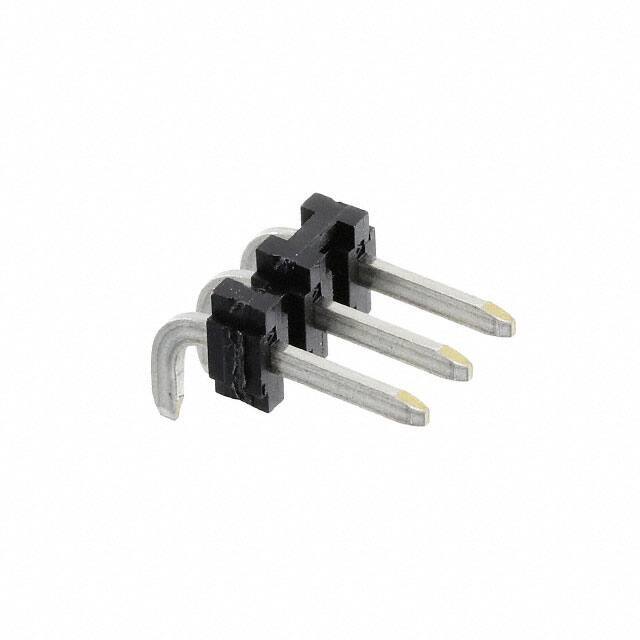

87655-3 TE Connectivity
Same model may have multiple batches, images only for reference.

87655-3

Part No 87655-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 3POS 3.96MM / Connector Header Through Hole, Right Angle 3 position 0.156" (3.96mm)
Datasheet
87655-3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod I
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 3
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.345" (8.76mm)
Contact Length - Post 0.150" (3.81mm)
Overall Contact Length -
Insulation Height 0.250" (6.35mm)
Contact Shape Rectangular
Contact Finish - Mating Tin-Lead
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Thermoplastic
Features -
Temperature Range - Operating -65°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 50.0µin (1.27µm)
Applications -
Base Product Number 87655
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1366066-87655-3
Ultra Librarian 3D Model Ultra Librarian 87655-3 CAD Model

Description

The TE Connectivity AMP Connectors AMPMODU Mod I series is an obsolete package of rectangular connectors.

  • Mounting Type: Through Hole, Right Angle
  • Temperature Range: -65°C to 105°C
  • Current Rating: 5A
  • Connector Type: Header
  • Contact Gender: Male Pin
  • Number of Positions: 3
  • Number of Rows: 1
  • Pitch Mating: 0.156" (3.96mm)
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Brass
  • Contact Finish: Tin-Lead
  • Housing Material: Thermoplastic
  • Insulation Color: Black
