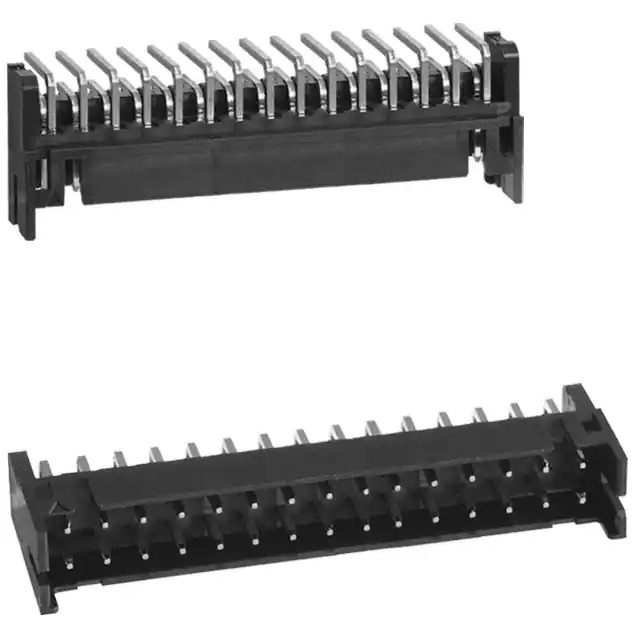

Same model may have multiple batches, images only for reference.

DF11-30DP-2DS(24)

Name: DF11-30DP-2DS(24)
Brand: Hirose Electric Co Ltd
SKU: 1355031
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF11-30DP-2DS(24)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 30POS 2MM / Connector Header Through Hole, Right Angle 30 position 0.079" (2.00mm)
Datasheet	DF11-30DP-2DS(24) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF11
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	30
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.118" (3.00mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	-
Insulation Height	0.197" (5.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Voltage Rating	250V
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	DF11
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1355031-DF11-30DP-2DS(24)
Ultra Librarian 3D Model	Ultra Librarian DF11-30DP-2DS(24) CAD Model

Alternative Products

Description

The DF11-30DP-2DS(24) is a male pin header connector manufactured by Hirose Electric Co Ltd.

Series: DF11
Connection Type: Board-to-board or cable connections
Pitch: 0.079" (2.00mm)
Positions: 30
Rows: 2
Current Rating: 2A
Design: Shrouded with 4-wall shielding
Termination Style: Solder
Mounting: Through-hole at a right angle
Material: High-quality brass with a tin finish
Suitable for: Various electronic devices that require reliable and secure connections.
