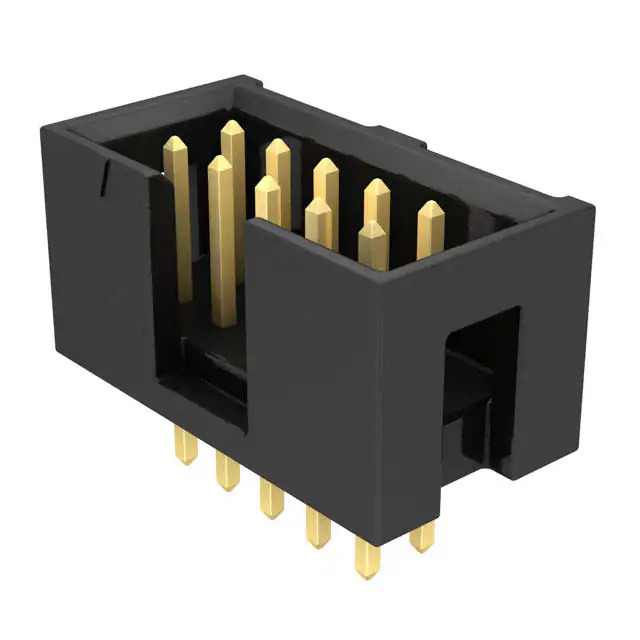

Same model may have multiple batches, images only for reference.

TST-105-02-G-D

Name: TST-105-02-G-D
Brand: Samtec Inc.
SKU: 1366275
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TST-105-02-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2.54MM
Datasheet	TST-105-02-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, TST
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Contact Length - Post	0.165" (4.19mm)
Overall Contact Length	0.530" (13.46mm)
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	3.00µin (0.076µm)
Applications	-
Base Product Number	TST-105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366275-TST-105-02-G-D
Ultra Librarian 3D Model	Ultra Librarian TST-105-02-G-D CAD Model

Alternative Products

Description

The TST-105-02-G-D is a male pin header connector from Samtec Inc.'s Flex Stack, TST series.

Manufacturer: Samtec Inc.
Series: Flex Stack, TST
Pitch: 0.100" (2.54mm)
Number of Positions: 10
Number of Rows: 2
Style: Shrouded
Shrouding Direction: 4 Walls
Mounting Type: Through Hole
Current Rating (Per Contact): 3.4A
Contact Finish: Gold
Contact Material: Phosphor Bronze
Insulation Height: 0.350" (8.89mm)
