Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 1.8V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 45ns
Current - Reverse Leakage @ Vr 15μA @ 600V
Mounting Through Hole
Case / Package TO-220-2
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 1080456-MSR1560G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MSR1560G CAD Model

Description

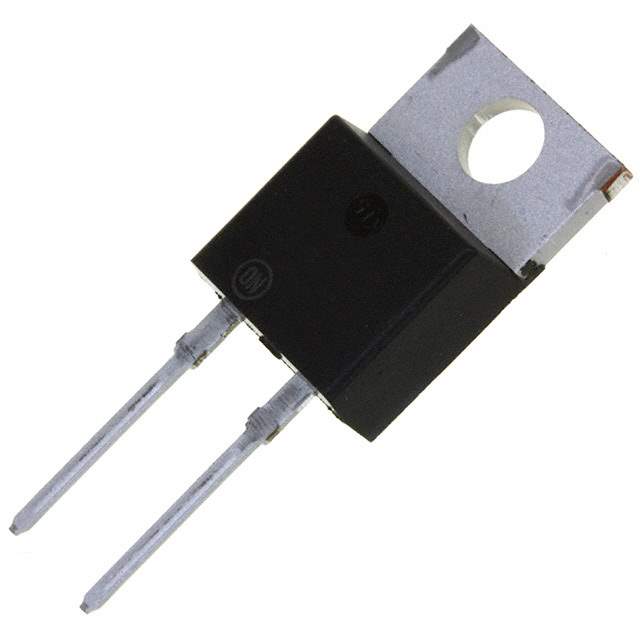

ON Semiconductor MSR1560G - Robust Rectifier Diode

The MSR1560G is a high-performance rectifier diode from ON Semiconductor, designed to provide efficient and reliable operation in a variety of applications. This robust component is ideal for high-voltage, high-current environments, making it a perfect choice for power supply systems, inverters, converters, and other power management solutions.

Key Features:

  • High Reverse Voltage: With a maximum repetitive reverse voltage (Vrrm) of 600V, the MSR1560G can handle the demands of high-voltage circuits.
  • High Forward Current: The device has a high average rectified forward current (Io) of 15A, suitable for applications requiring significant power handling capability.
  • Low Forward Voltage Drop: The low forward voltage drop (Vf) ensures higher efficiency and reduced power losses during operation.
  • Surge Current Capability: Its surge overload rating allows the diode to withstand high surge currents, providing additional protection against momentary overloads.
  • Robust Construction: The MSR1560G is encapsulated in a rugged, molded plastic package, which provides enhanced mechanical strength and thermal performance.
  • Operating Temperature Range: It operates effectively within a wide temperature range from -65°C to +175°C, accommodating various environmental conditions.

Applications:

The MSR1560G is versatile and can be used in a range of applications, including:

  • Switching power supplies
  • Motor controllers
  • Automotive charging systems
  • Free-wheeling diodes
  • Power factor correction circuits

Reliability and Quality:

ON Semiconductor is known for its commitment to quality and reliability. The MSR1560G is manufactured with the highest standards, ensuring consistent performance and longevity. Its robust design and superior electrical characteristics make it a reliable choice for engineers and professionals seeking a dependable rectifier diode for their demanding applications.
