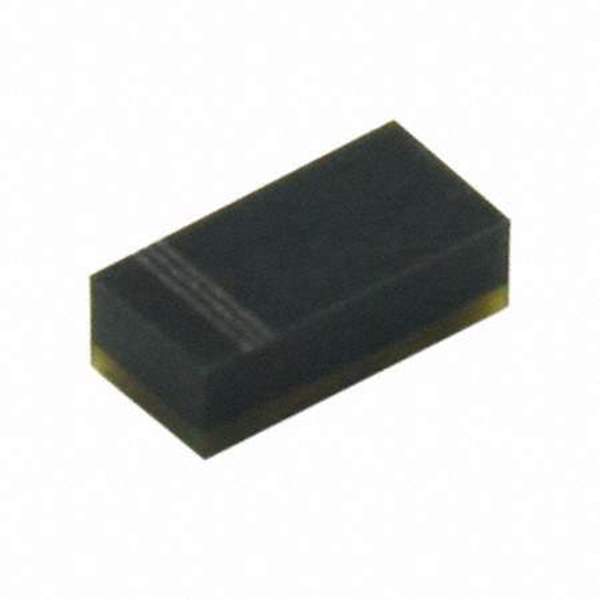

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Comchip Technology
Package Tape & Reel (TR)
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 500 mV @ 200 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 30 µA @ 30 V
Capacitance @ Vr, F 9pF @ 10V, 1MHz
Mounting SMD (SMT)
Package / Case 1005 (2512 Metric)
Supplier Device Package 1005/SOD-323F
Operating Temperature - Junction 125°C (Max)
Base Product Number CDBF0230
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Standard Package 4,000
Win Source Part Number 1051670-CDBF0230-HF
Ultra Librarian 3D Model Ultra Librarian CDBF0230-HF CAD Model

Description

The Comchip Technology 1051670-CDBF0230-HF is a Schottky diode that has a voltage - DC reverse (Vr) (Max) of 30 V and a current - average rectified (Io) of 200mA. The voltage - forward (Vf) (Max) @ If is 500 mV @ 200 mA and the current - reverse leakage @ Vr is 30 μA @ 30 V. The capacitance @ Vr, F is 9pF @ 10V, 1MHz and it has a fast recovery speed of < 200mA (Io), any speed. It comes in a 1005 (2512 Metric) package and each standard package contains 4,000 pcs. This product is obsolete in the market.
