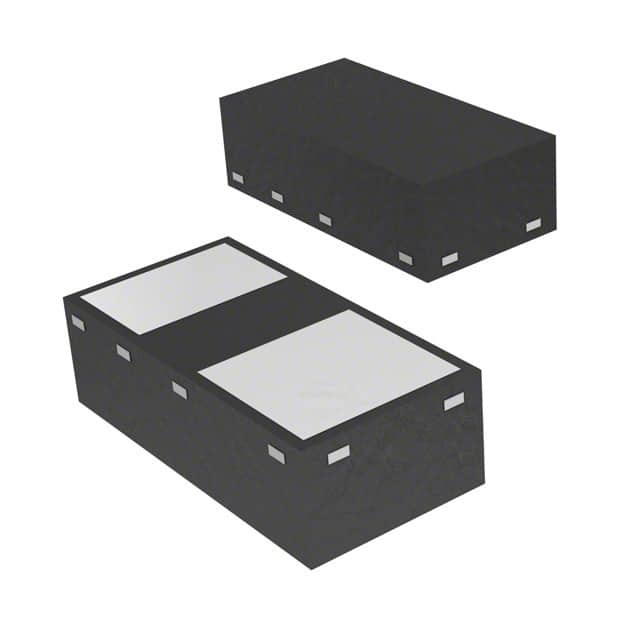

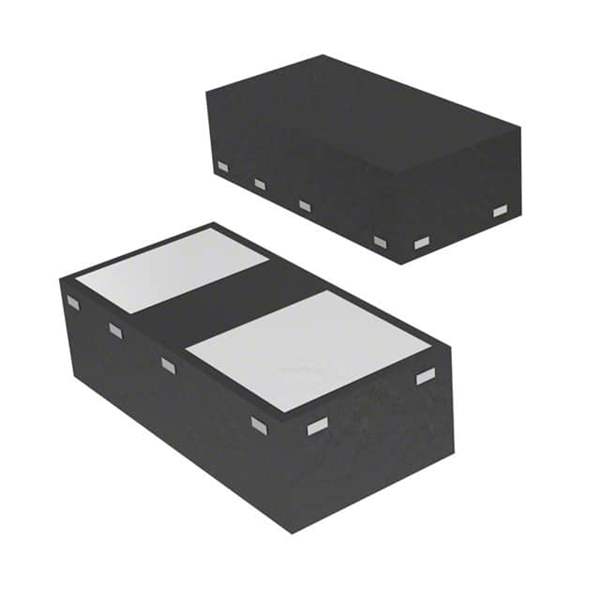

Same model may have multiple batches, images only for reference.

CCS15S40,L3F

Name: CCS15S40,L3F
Brand: Toshiba Semiconductor and Storage
SKU: 1051451
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CCS15S40,L3F
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 40V 1.5A CST2C / Diode Schottky 40 V 1.5A Surface Mount CST2C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Toshiba Semiconductor and Storage
Package	Tape & Reel
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	1.5A
Voltage - Forward (Vf) (Max) @ If	550 mV @ 1.5 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	200 µA @ 40 V
Capacitance @ Vr, F	170pF @ 0V, 1MHz
Mounting	SMD (SMT)
Package / Case	2-SMD, No Lead
Supplier Device Package	CST2C
Operating Temperature - Junction	125°C (Max)
Base Product Number	CCS15S40
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	CCS15S40L3FCT,CCS15S40L3FDKR,CCS15S40,L3F(T,CCS15S40,L3F(A,CCS15S40,L3F(B,CCS15S40L3FTR
Standard Package	10,000
Win Source Part Number	1051451-CCS15S40,L3F
Ultra Librarian 3D Model	Ultra Librarian CCS15S40,L3F CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage 1051451-CCS15S40,L3F is a Schottky diode that has a maximum reverse voltage of 40 V and a forward current of 1.5 A.

Maximum Reverse Voltage: 40 V
Forward Current: 1.5 A
Forward Voltage Drop: 550 mV @ 1.5 A
Reverse Leakage Current: 200 µA @ 40 V
Capacitance: 170pF @ 0V, 1MHz
Package: 2-SMD, No Lead
Packaging: Tape and reel
Supplier Device Package: CST2C
Series: CCS15S40
Type: Discrete Semiconductor Product
