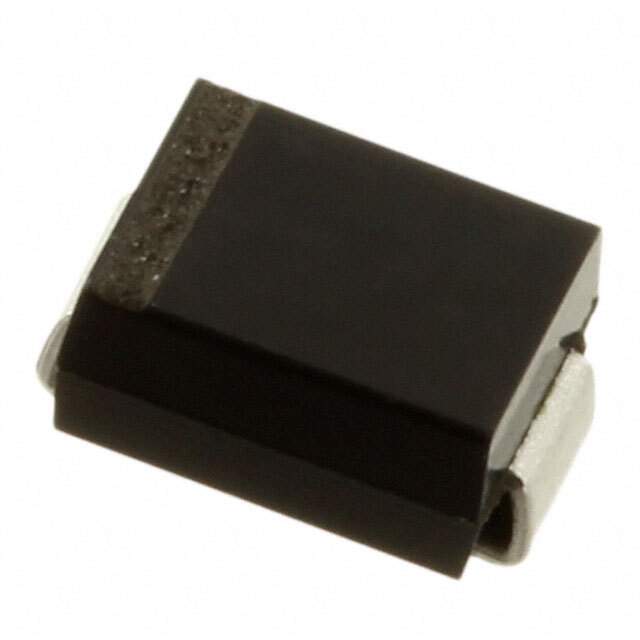

CMSH2-20L TR13 PBFREE Real Image
Same model may have multiple batches, images only for reference.

CMSH2-20L TR13 PBFREE

Part No CMSH2-20L TR13 PBFREE
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 2A SMB  /  Diode Schottky 20 V 2A Surface Mount SMB
Datasheet
CMSH2-20L TR13 PBFREE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Central Semiconductor Corp
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 400 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 20 V
Capacitance @ Vr, F 150pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
Supplier Device Package SMB
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number CMSH2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names CMSH2-20L TR13CT-ND,1514-CMSH2-20LTR13PBFREETR,CMSH2-20L TR13-ND,CMSH2-20LTR13,CMSH2-20LTR13DKR,CMSH2-20L TR13DKR,CMSH2-20LTR13CT,CMSH2-20LTR13DKR-ND,CMSH2-20L TR13CT,1514-CMSH2-20LTR13PBFREEDKR,CMSH2-20LTR13-ND,CMSH2-20L TR13,1514-CMSH2-20LTR13PBFREECT,CMSH2-20LTR13CT-ND,CMSH2-20L TR13DKR-ND
Standard Package 3,000
Win Source Part Number 1052738-CMSH2-20L TR13 PBFREE
Ultra Librarian 3D Model Ultra Librarian CMSH2-20L TR13 PBFREE CAD Model

Description

The CMSH2-20L TR13 PBFREE is a Schottky diode from Central Semiconductor Corp.

  • Recovery Time: Fast, less than 500ns
  • Maximum DC Reverse Voltage: 20V
  • Average Rectified Current: 2A
  • Forward Voltage: 400mV @ 2A
  • Reverse Leakage Current: 500µA @ 20V
  • Capacitance: 150pF @ 4V, 1MHz
  • Junction Operating Temperature Range: -65°C to 150°C
  • Package Type: DO-214AA, SMB
