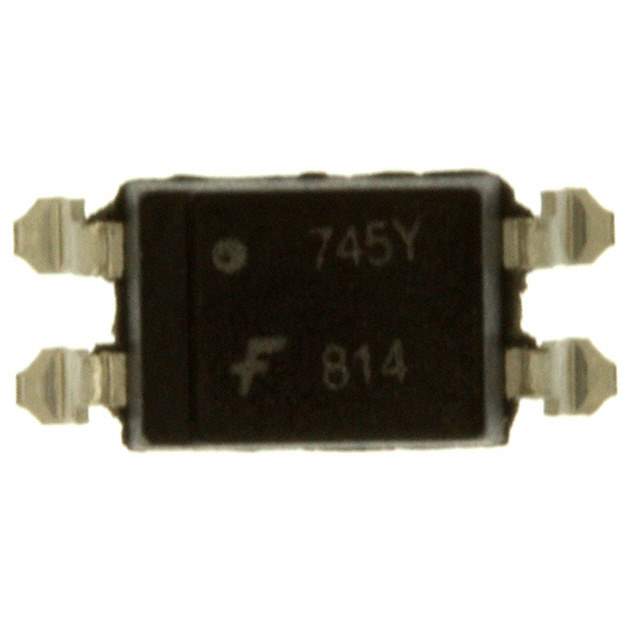

ON Semiconductor FOD814S Optocoupler

The FOD814S is a robust optocoupler device from ON Semiconductor, designed to provide electrical isolation between its input and output with a high current transfer ratio (CTR). This component is part of the FOD814 Series, which is known for its reliability and performance in a wide range of applications where signal isolation is critical.

Key Features

• High Isolation Voltage: The FOD814S offers an isolation voltage of 5000V RMS, which is ideal for protecting sensitive electronics from high voltage transients.
• Current Transfer Ratio (CTR): It has a CTR range from 50% to 600% at an input current of 5mA, ensuring efficient signal transmission between circuits.
• UL Recognized: This optocoupler is UL recognized (File E90700), providing assurance of its safety and reliability for use in various applications.
• VDE Certified: It also complies with VDE 0884 requirements, further attesting to its high isolation capabilities.
• Lead-Free and RoHS Compliant: The FOD814S is lead-free and complies with RoHS standards, making it suitable for use in environmentally sensitive applications.

Applications

The FOD814S optocoupler is versatile and can be used in numerous applications, including but not limited to:

• Power supply regulation and control
• Signal isolation in PLCs (Programmable Logic Controllers)
• Digital logic ground isolation
• Motor control circuits
• Line receivers

Package and Quality

The device is offered in a 4-pin DIP package, which is compact and suitable for through-hole mounting, making it easy to integrate into various circuit designs. The FOD814S is manufactured with ON Semiconductor's commitment to quality, ensuring high performance and durability for the end-user.

Overall, the FOD814S from ON Semiconductor is a reliable choice for designers looking to implement electrical isolation in their circuits while maintaining signal integrity and adhering to safety standards.
