Product Overview: TDA1565TH/N1 by NXP

The TDA1565TH/N1 is a high-performance integrated circuit produced by NXP Semiconductors, designed specifically for the automotive audio market. This advanced class-H power amplifier is notable for its impressive efficiency, reliability, and sound quality, making it an ideal choice for car audio systems that demand superior acoustic performance without compromising on power consumption.

Key Features

• High Efficiency: The TDA1565TH/N1 utilizes class-H technology, which reduces power loss and improves efficiency by dynamically adjusting the supply voltage in response to the audio signal's amplitude.
• Power Output: Capable of delivering 26 W of continuous output power into a 4-ohm load, this IC can drive most car speakers with ease, ensuring a powerful and immersive listening experience.
• Low Distortion: Ensures high-fidelity audio reproduction with minimal distortion, providing a clear and detailed sound.
• Thermal Protection: Integrated thermal protection circuitry helps prevent overheating, ensuring long-term reliability and safety.
• Multiple Protection Features: The device includes features such as short-circuit protection, load dump protection, and a mute function for additional operational safety.

Applications

Primarily designed for automotive applications, the TDA1565TH/N1 is perfect for use in car radios, audio amplifiers, and multimedia systems where high-quality audio performance is required. Its robust design also makes it suitable for other environments that may experience temperature fluctuations and vibrations.

Technical Specifications

• Supply Voltage Range: 6 V to 18 V
• Output Power: 26 W into 4 ohms at 14.4 V supply
• Total Harmonic Distortion (THD): Very low
• Operating Temperature Range: -40°C to +85°C

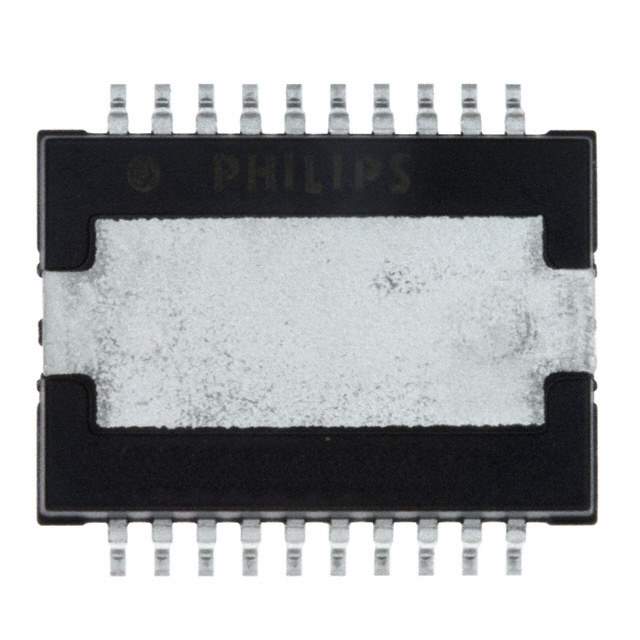

• Package: HSOP24

In summary, the TDA1565TH/N1 by NXP stands out as a robust, efficient, and high-performance solution for automotive audio amplification. Its combination of power, protection features, and sound quality makes it a top choice for manufacturers and audio enthusiasts alike.
