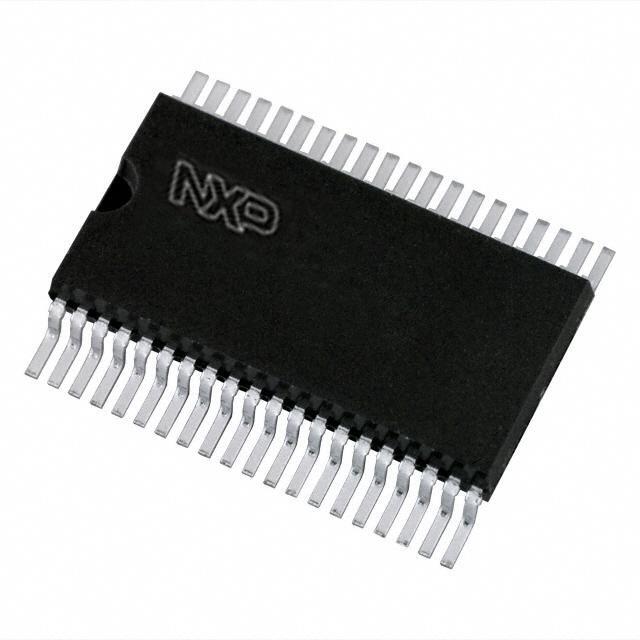

Product Overview: NXP PCF8566T/1,112 Universal LCD Driver

The NXP PCF8566T/1,112 is a state-of-the-art Universal LCD driver designed to drive liquid crystal displays with low multiplex rates. It is a versatile and efficient solution for a wide range of applications that require alphanumeric and segmented display capabilities.

Key Features

• Display Control: The device is capable of controlling LCD displays with up to 24 segments and supports up to 4 backplanes, allowing for clear and flexible display options.
• Interface: It features an I²C-bus interface for communication, which simplifies the integration process with microcontrollers and reduces the number of wires needed for connection, enhancing design simplicity and reliability.
• Low Power Consumption: Designed with power efficiency in mind, the PCF8566T/1,112 is ideal for battery-operated devices, as it operates at a low power supply voltage range from 2.5V to 6.0V.
• Flexibility: The device is suitable for a wide range of LCD applications, including handheld devices, instrumentation panels, and control interfaces, thanks to its flexible multiplexing scheme.
• Package: It comes in a compact SOT358-1 package, making it a space-saving solution for designs where board real estate is at a premium.

Applications

The NXP PCF8566T/1,112 is ideal for various applications where a simple and effective display solution is needed. It is commonly used in:

• Portable instruments
• Medical devices
• Home appliances
• Automotive dashboards
• Industrial control systems

Conclusion

The NXP PCF8566T/1,112 Universal LCD Driver is an excellent choice for designers looking to implement an LCD interface in their products. With its low power consumption, I²C-bus interface, and flexible display control, this driver simplifies the design process and enhances the user interface of any product it is incorporated into. Whether for consumer electronics or industrial applications, the PCF8566T/1,112 offers a reliable and efficient solution for driving LCD displays.
