Same model may have multiple batches, images only for reference.

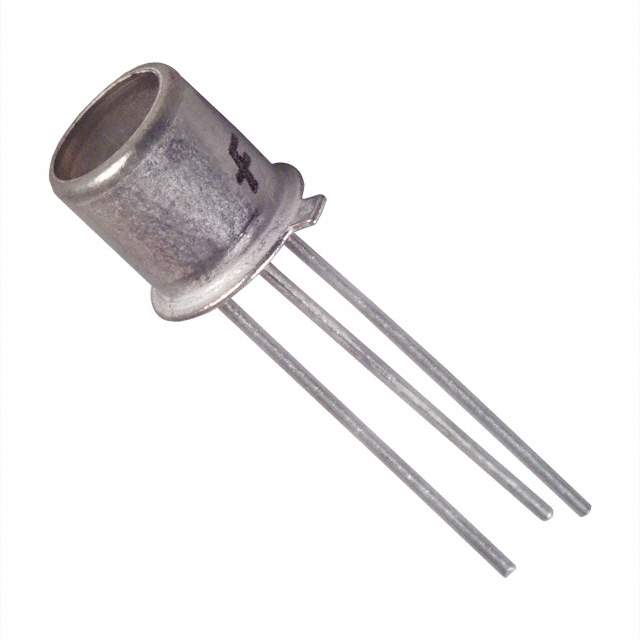

L14F1 Real Image
Same model may have multiple batches, images only for reference.

L14F1

Part No L14F1
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Phototransistors
Description DETECTOR/DARLINGTON PHOTO TO-18
Datasheet
L14F1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Status Obsolete(EOL)
VCEO Maximum Collector-Emitter Breakdown Voltage 25V
Current - Dark (Id) (Max) 100nA
Wavelength 880nm
Viewing Angle 16°
Maximum Power Dissipation 300mW
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -65°C to 125°C (TA)
Dimension TO-206AA, TO-18-3 Metal Can
Win Source Part Number 205907-L14F1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian L14F1 CAD Model

Description

The Fairchild/ON Semiconductor 205907-L14F1 is a through-hole mounted, top view sensor with a viewing angle of 16 degrees and a wavelength of 880nm.

  • Mounting Type: Through-hole
  • View: Top view
  • Viewing Angle: 16 degrees
  • Wavelength: 880nm
  • Maximum Collector-Emitter Breakdown Voltage: 25V
  • Maximum Power Dissipation: 300mW
  • Temperature Range: -65 degrees Celsius to 125 degrees Celsius
  • Status: Obsolete
