Same model may have multiple batches, images only for reference.

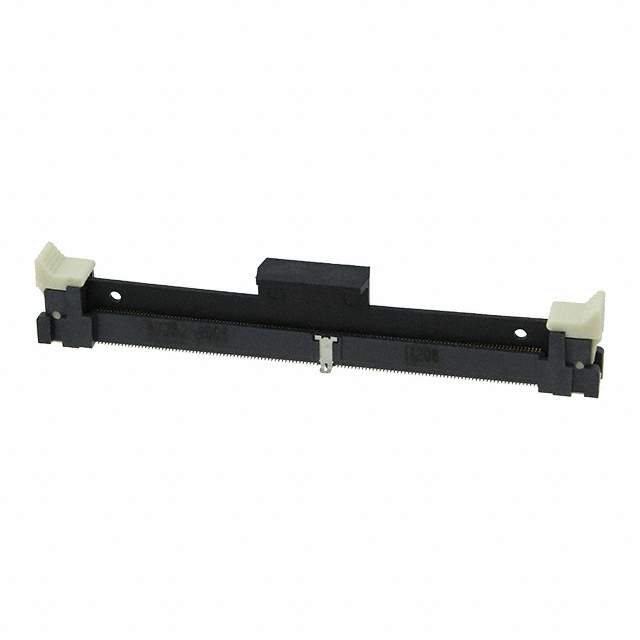

87782-3003 Real Image
Same model may have multiple batches, images only for reference.

87782-3003

Part No 87782-3003
Manufacturer Molex, LLC
Catalog Memory Connectors - Accessories
Description Conn Mini DIMM Socket SKT 244 POS 0.6mm Solder ST SMD MiniDIMM Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Module
Connector Type Socket
Contact Plating Gold
Country of Origin SG
Current Rating 1 A
Housing Color Black
Housing Material Thermoplastic
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 30 V
Memory Type DDR3 SDRAM
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Circuits 244
Number of Contacts 244
Number of Pins 244
Number of Positions 244
Orientation Straight
Pitch 600 µm
Plating Tin
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination SMD/SMT
Voltage Rating 30 V
Weight 6.135999 g
Win Source Part Number 1026530-87782-3003
Categories Memory Connectors - Accessories
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 87782-3003 CAD Model

Description

The 1026530-87782-3003 is a low-popularity electronic component manufactured by Molex, LLC.

  • Popularity: low-popularity
  • Manufacturer: Molex, LLC
  • Type: socket connector
  • Positions: 244
  • Pitch: 600 µm
  • Orientation: straight
  • Termination: SMD/SMT
  • Contact Material: gold
  • Voltage Rating: 30 V
  • Current Rating: 1 A
  • Contacts: 244
  • RoHS Compliant: yes
  • Mounting: surface mount
  • Country of Origin: SG
  • Alternative Parts: 87918-0301, 78001-3344, 87783-0301, 10079248-10102LF, MM80-204B1-E1, 10079248-11103LF, 0877823003, 87782-3003., 877823003
