Same model may have multiple batches, images only for reference.

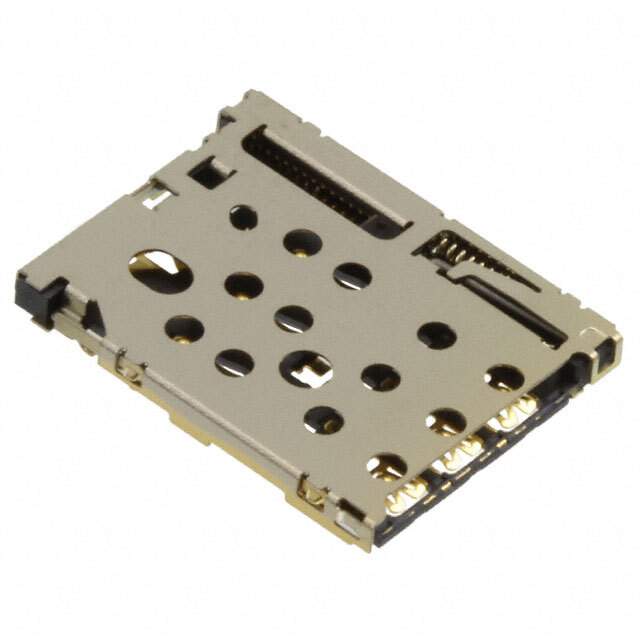

SF72S006VBAR2500 Real Image
Same model may have multiple batches, images only for reference.

SF72S006VBAR2500

Part No SF72S006VBAR2500
Manufacturer JAE Electronics
Catalog Memory Connectors - Accessories
Description CONN NANO SIM CARD PUSH-PUSH / 8 (6 + 2) Position Card Connector NANO SIM Surface Mount, Right Angle Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors - PC Card Sockets
Mfr JAE Electronics
Series SF72
Package Tape & Reel
Product Status Obsolete
Card Type NANO SIM
Number of Positions 8 (6 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Type Surface Mount, Right Angle
Features Switch
Height Above Board 0.049" (1.25mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 11.8µin (0.30µm)
Base Product Number SF72S006
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 670-2799-1,670-2799-6,670-2799-2
Standard Package 2,500
Win Source Part Number 1092416-SF72S006VBAR2500
Ultra Librarian 3D Model Ultra Librarian SF72S006VBAR2500 CAD Model

Description

The JAE Electronics SF72S006VBAR2500 is a connector and ejector electronic component that belongs to the SF72 series.

  • Series: SF72
  • Positions: Eight
  • Features: Six plus two features and a switch
  • Connector Type: Gold
  • Contact Finish Thickness: 11.8µin (0.30µm)
  • Package: Tape and Reel
  • Height Above Board: 0.049" (1.25mm)
  • Card Type: NANO SIM
  • Insertion and Removal Method: Push in and Push out
  • Mounting Feature: Normal and Standard-Top
  • Mounting Type: Surface Mount and Right Angle
  • Alternative Parts: 1473005-1, 500901-0801, 1473005-4, 503398-1892, 47219-2001, and 2-2013289-1
