Same model may have multiple batches, images only for reference.

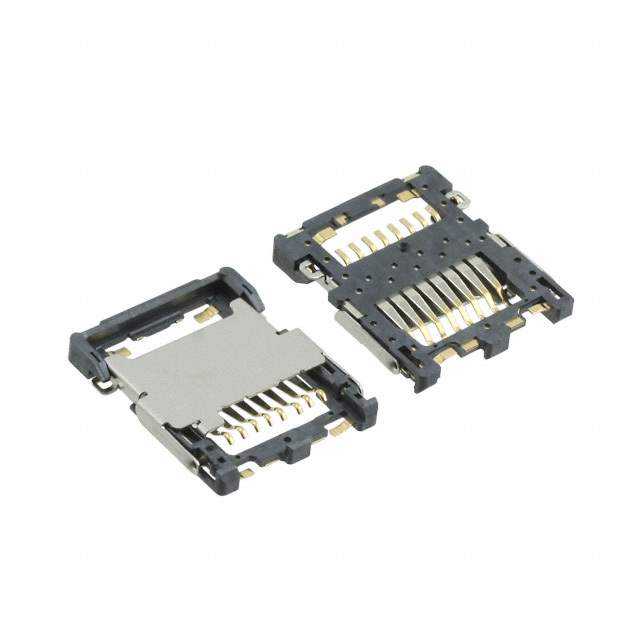

ST1W008S4ER1500 Real Image
Same model may have multiple batches, images only for reference.

ST1W008S4ER1500

Part No ST1W008S4ER1500
Manufacturer JAE Electronics
Catalog Memory Connectors - Accessories
Description CONN MICRO SD CARD HINGED TYPE / 8 Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Gold
Datasheet
ST1W008S4ER1500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors - PC Card Sockets
Mfr JAE Electronics
Series ST1
Package Tape & Reel
Card Type Secure Digital - microSD™
Number of Positions 8
Connector Type Connector and Ejector
Insertion, Removal Method Hinged Lid
Mounting Type Surface Mount, Right Angle
Height Above Board 0.079" (2.00mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number ST1W008S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -670-1798-2,-670-1798-1,-670-1798-ND,-670-1798,-ST1W008S4ER1500,-670-1528-1,670-1528-1,-670-1528-1-ND,670-1528-2,-670-1528-2,670-1528-6,-670-1798-2-ND,-670-1798-1-ND
Standard Package 1,500
Win Source Part Number 1170621-ST1W008S4ER1500
Ultra Librarian 3D Model Ultra Librarian ST1W008S4ER1500 CAD Model

Description

The JAE Electronics ST1W008S4ER1500 is a connector and ejector for Secure Digital - microSD™ card type.

  • Card Type: Secure Digital - microSD™
  • Positions: 8
  • Packaging: Standard Package of 1500
  • Mounting Type: Surface Mount, Right Angle
  • Insertion and Removal Method: Hinged Lid
  • Height Above Board: 0.079" (2.00mm)
