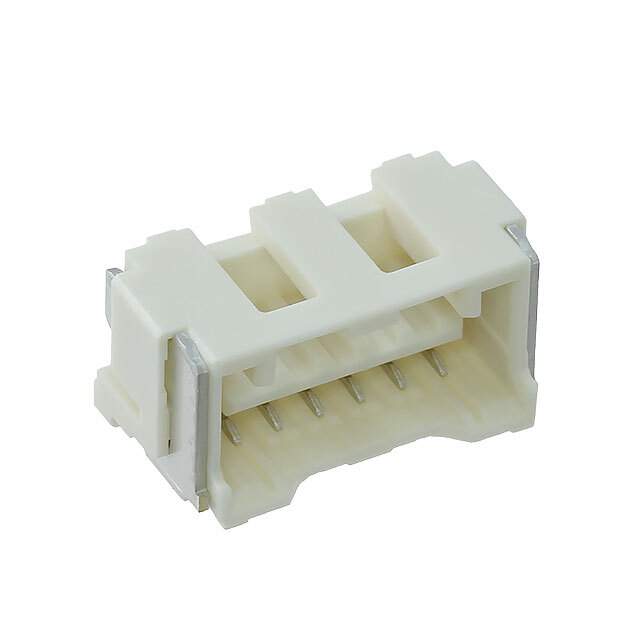

5025850670 Real Image
Same model may have multiple batches, images only for reference.

5025850670

Part No 5025850670
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 6POS 0.059 TIN SMD R/A / 6 Position Receptacle Connector 0.059" (1.50mm) Surface Mount, Right Angle Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer Molex
Packaging Reel - TR
Connector Type Receptacle
Contact Type Forked
Style Board to Cable/Wire
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.059" (1.50mm)
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Insulation Color Beige
Insulation Height 0.250" (6.35mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place, Solder Retention
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material Resin
Contact Material Copper Alloy
Contact Finish Thickness - Post 39.4µin (1.00µm)
Base Product Number 502585
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM12832TR,502585-0670,5025850670-ND,WM12832DKR,WM12832CT
Standard Package 1,000
Win Source Part Number 1332867-5025850670
Ultra Librarian 3D Model Ultra Librarian 5025850670 CAD Model

Description

The 5025850670 is a surface mount connector manufactured by Molex.

  • Category: Rectangular Connectors Headers, Receptacles, Female Sockets
  • Positions: 6
  • Pitch: 1.50mm
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Flammability Rating: UL94 V-0
  • RoHS Compliant: Yes
  • Applications: Automotive, General Purpose, Industrial, Lighting, and Medical
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Mounting Style: Surface Mount
  • Orientation: Right Angle
  • Temperature Range: -40°C to 105°C
  • Contact Shape: Forked
