Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series High Performance Interconnect (HPI)
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Contact Length - Mating 0.138" (3.50mm)
Insulation Height 0.242" (6.14mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA9T), Nylon 9T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Contact Finish Thickness - Post 80.0µin (2.03µm)
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 1775470
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854170-1775470-4
Ultra Librarian 3D Model Ultra Librarian 1775470-4 CAD Model

Description

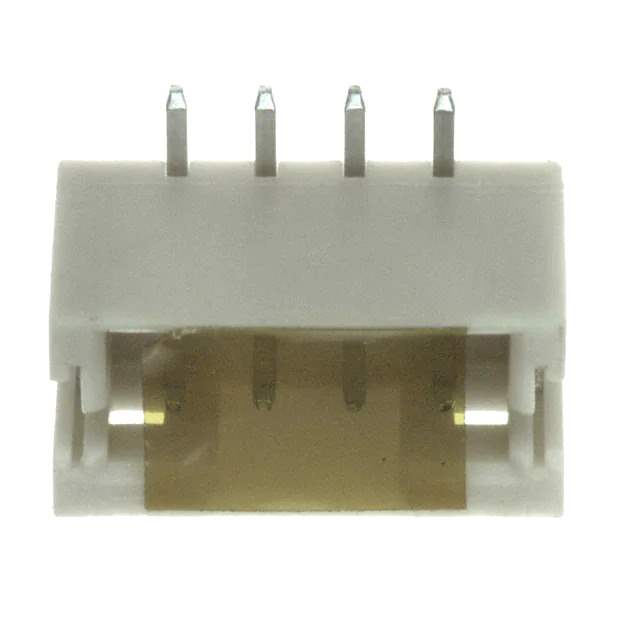

The High Performance Interconnect (HPI) series male pin header is a versatile and reliable connector for your electronic applications.

  • Positions: 4
  • Pitch: 0.079" (2.00mm)
  • Features: Solder Retention
  • Contact Material: Brass
  • Voltage Rating: 250V
  • Mounting Type: Surface Mount
  • Design: Shrouded
  • Contact Shape: Square
