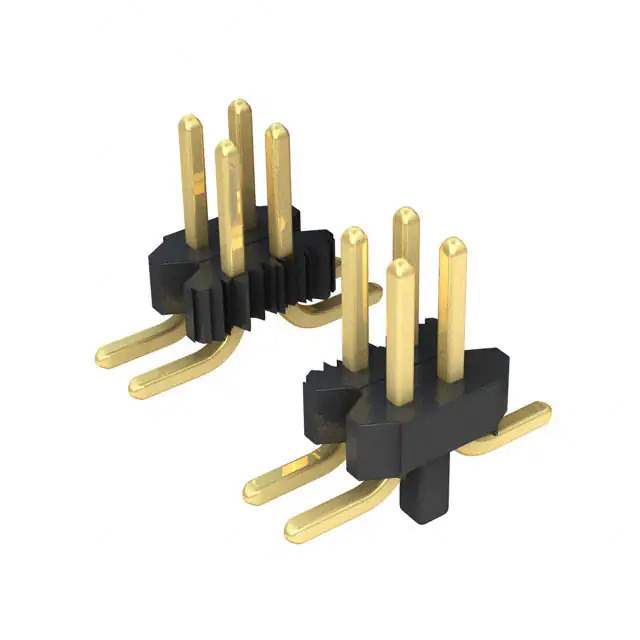

Same model may have multiple batches, images only for reference.

20021121-00010T4LF

Name: 20021121-00010T4LF
Brand: Amphenol
SKU: 854481
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	20021121-00010T4LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 1.27MM / Connector Header Surface Mount 10 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol
Series	Minitek127® 1.27mm
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Voltage Rating	125VAC
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	20021121
Standard Package	93 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	854481-20021121-00010T4LF
Ultra Librarian 3D Model	Ultra Librarian 20021121-00010T4LF CAD Model

Alternative Products

Description

The 854481-20021121-00010T4LF is a male pin header connector from Amphenol's Minitek127® 1.27mm series.

Positions: 10
Connections: Board-to-board
Fastening Type: Push-pull
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Current Rating: 1A per contact
Temperature Range: -55°C to 125°C
