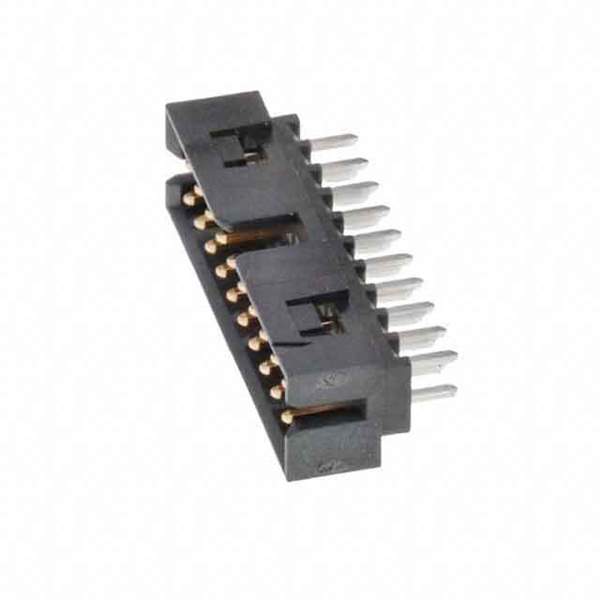

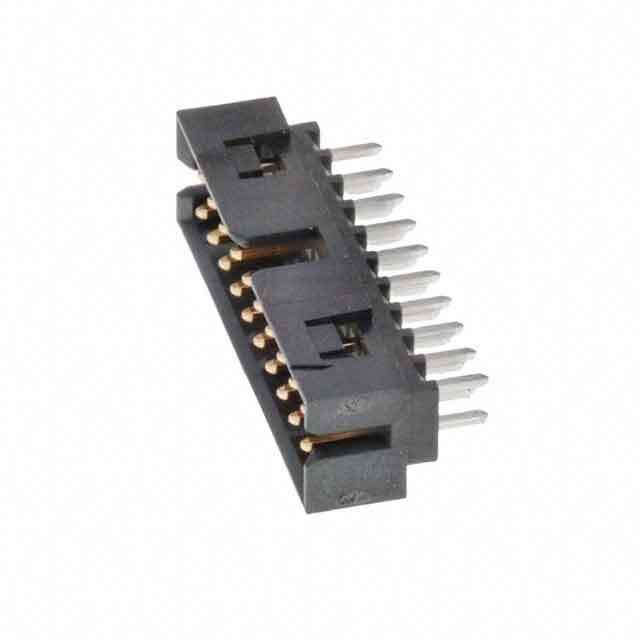

0878312019 Real Image
Same model may have multiple batches, images only for reference.

0878312019

Part No 0878312019
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2MM / Connector Header Through Hole 20 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Milli-Grid 87831
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.141" (3.60mm)
Contact Length - Post 0.098" (2.50mm)
Insulation Height 0.252" (6.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 1.97µin (0.050µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 125V
Contact Finish Thickness - Post 74.8µin (1.90µm)
Applications Automotive, General Purpose, Telecommunications
Base Product Number 087831
Standard Package 23 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855544-0878312019
Ultra Librarian 3D Model Ultra Librarian 0878312019 CAD Model

Description

The Milli-Grid 87831 series is a 20-position male pin header connector designed for board to board or cable applications.

  • Positions: 20
  • Feature: Keying slot
  • Contact Material: Phosphor bronze
  • Rows: 2
  • Contact Termination: Solder
  • Voltage Rating: 125V
  • Current Rating: 2A
  • Insulation Material: Polyamide (PA), nylon, glass filled
  • Style: Board to board or cable
  • Mating Pitch: 0.079" (2.00mm)
  • Contact Finish: Gold
  • Contact Finish Thickness (Mating): 1.97µin (0.050µm)
  • Contact Finish Thickness (Post): 74.8µin (1.90µm)
  • Mounting: Through-hole
  • Shrouding: 4 walls
  • HTSUS Code: 8536.69.4040
  • Status: Active
