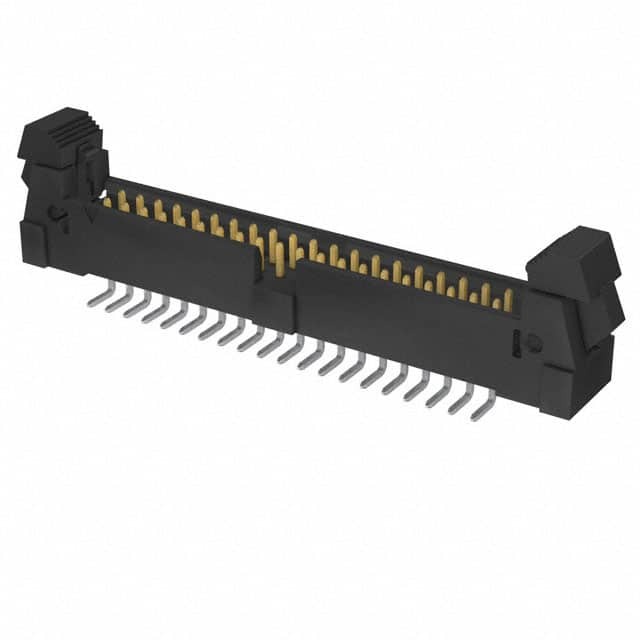

EHT-120-01-S-D-SM-P-TR

Name: EHT-120-01-S-D-SM-P-TR
Brand: Samtec Inc.
SKU: 917966
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EHT-120-01-S-D-SM-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 40POS 2MM / Connector Header Surface Mount 40 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	EHT
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.370" (9.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	EHT-120
Standard Package	125 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	917966-EHT-120-01-S-D-SM-P-TR
Ultra Librarian 3D Model	Ultra Librarian EHT-120-01-S-D-SM-P-TR CAD Model

Alternative Products

Description

The 917966-EHT-120-01-S-D-SM-P-TR is a rectangular connector header manufactured by Samtec Inc.

Manufacturer: Samtec Inc.
Series: EHT
Positions: 40
Features: Keying Slot, Pick and Place
Contact Type: Male Pin
Rows: Two
Termination: Solder
Fastening: Latch Lock/Eject Hooks
Package: Tape & Reel
Contact Material: Phosphor Bronze
Contact Finish: Gold
Pitch: 0.079 inches (2.00mm)
Mating Contact Finish Thickness: 30.0µin (0.76µm)
Temperature Range: -55°C to 125°C
