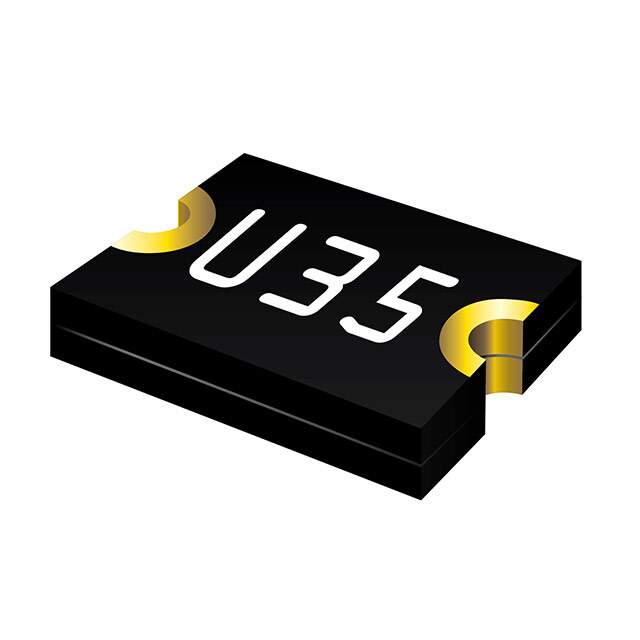

MF-USML270-2 Real Image
Same model may have multiple batches, images only for reference.

MF-USML270-2

Part No MF-USML270-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 2.7A 1210
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Type Polymeric
Voltage - Max 6V
Current - Max 50A
Current - Hold (Ih) (Maximum) 2.7A
Current - Trip (It) 5.4A
Time to Trip 4s
Resistance - Initial (Ri) (Min) 4 mOhms
Resistance - Post Trip (R1) (Maximum) 20 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 1210 (3225 Metric), Concave
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Maximum) 0.024" (0.60mm)
Approvals cURus, TUV
Part Number Series MF-USML
Manufacturer Pack Quantity 5,000
MSL Level 2A (4 Weeks)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804180-MF-USML270-2
Ultra Librarian 3D Model Ultra Librarian MF-USML270-2 CAD Model

Description

The Bourns Inc. 804180-MF-USML270-2 is a polymeric type surface mount fuse with a maximum voltage rating of 6V and a maximum current rating of 50A.

  • Maximum Voltage: 6V
  • Maximum Current: 50A
  • Current Trip Rating: 5.4A
  • Time to Trip: 4 seconds
  • Resistance: 4 mOhms
  • Post Trip Resistance: 20 mOhms
  • Approvals: cURus, TUV
  • Manufacturer Package: 1210 (3225 Metric), Concave
  • Current Hold Rating: 2.7A
  • Maximum Thickness: 0.024" (0.60mm)
  • Temperature Range: -40°C to 85°C
  • Packaging: Reel
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 5,000
  • MSL Level: 2A (4 Weeks)
