Products specifications

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr TE Connectivity
Series AMP-Latch
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Forked
Number of Positions 26
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 26-28 AWG
Features Feed Through, Polarizing Key
Contact Finish Gold or Gold-Palladium
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Base Product Number 1658622
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 854081-1658622-6
Ultra Librarian 3D Model Ultra Librarian 1658622-6 CAD Model

Description

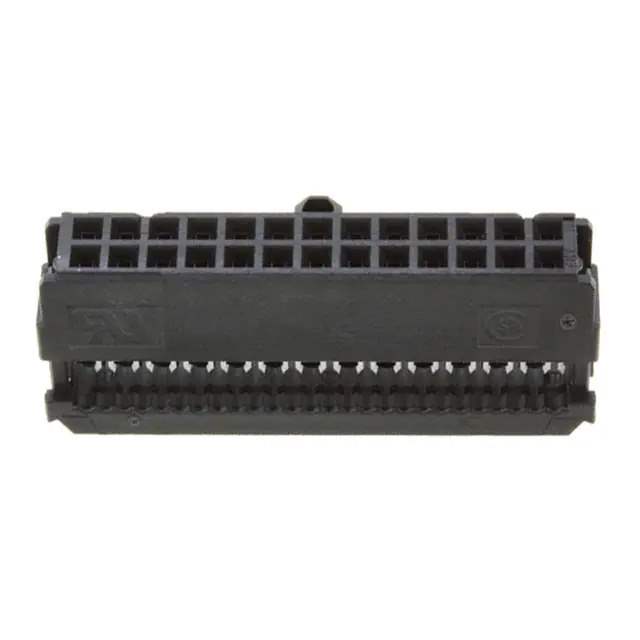

The 1658622-6 is a rectangular connector from TE Connectivity's AMP-Latch series.

  • Mounting Type: Free Hanging, Panel Mount
  • Pitch: 0.100" (2.54mm)
  • Number of Positions: 26
  • Design: Feed Through
  • Polarization: Polarizing Key
  • Connector Type: Receptacle
  • Contact Type: Forked
  • Cable Type: Ribbon
  • Termination: IDC
  • Contact Finish: Gold or Gold-Palladium
