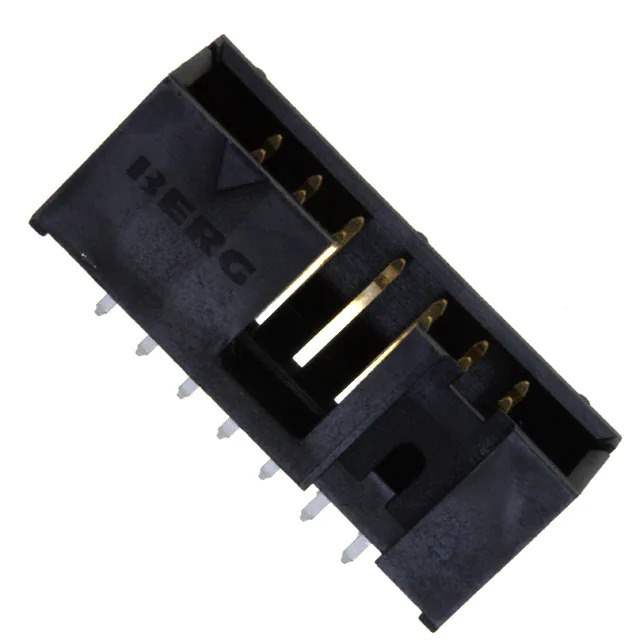

Same model may have multiple batches, images only for reference.

10056844-114LF

Name: 10056844-114LF
Brand: Amphenol
SKU: 904849
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	10056844-114LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol
Series	Quickie™
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.236" (6.00mm)
Contact Length - Post	0.079" (2.00mm)
Insulation Height	0.366" (9.30mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Keying Slot
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	10056844
Standard Package	23 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	904849-10056844-114LF
Ultra Librarian 3D Model	Ultra Librarian 10056844-114LF CAD Model

Description

The 904849-10056844-114LF is a male pin header connector from the Quickie™ series by Amphenol.

Series: Quickie™
Positions: 14
Features: Keying Slot
Mounting Type: Through-Hole
Fastening Type: Push-Pull
Contact Finish (Mating): Gold
Contact Finish (Post): Tin
Contact Finish Thickness (Mating): 30.0μin (0.76μm)
Contact Finish Thickness (Post): 78.7μin (2.00μm)
Contact Material: Copper Alloy
Insulation Color: Black
Design: Shrouded 4-Wall
Application: Board-to-Cable/Wire
Pitch: 0.100" (2.54mm)
Package: Tube
