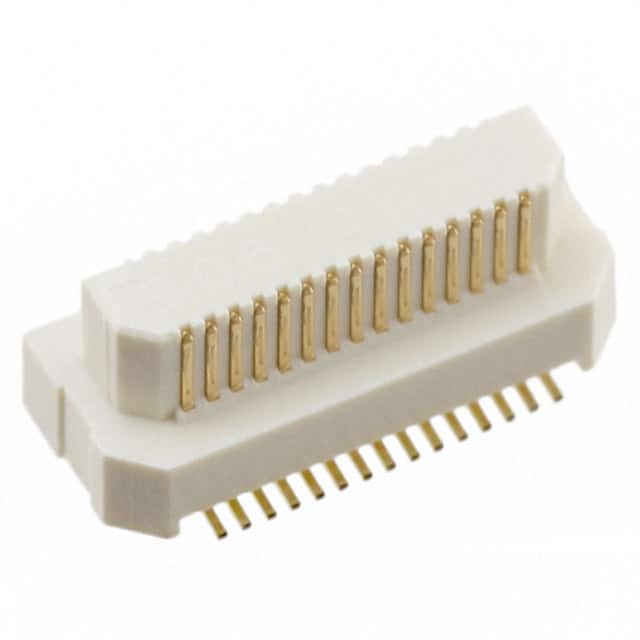

AXK6S30547YG

Name: AXK6S30547YG
Brand: Panasonic
SKU: 862775
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AXK6S30547YG
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN HDR 30POS SMD GOLD / 30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic
Series	P5KS
Package	Tape & Reel
Product Status	Active
Connector Type	Header, Outer Shroud Contacts
Number of Positions	30
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Mated Stacking Heights	5mm, 5.5mm, 8mm
Height Above Board	0.169" (4.30mm)
Base Product Number	AXK6S30547
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	862775-AXK6S30547YG
Ultra Librarian 3D Model	Ultra Librarian AXK6S30547YG CAD Model

Description

The 862775-AXK6S30547YG is a rectangular connector array from Panasonic.

Category: Connectors, Interconnects
Sub-Category: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Series: P5KS
Positions: 30
Pitch: 0.020" (0.50mm)
Connector Type: Header
Contacts: Outer Shroud
Rows: 2
Contact Finish: Gold
Package: Tape & Reel
Standard Package: 1,000 pieces
Mounting: Surface Mounted
Mated Stacking Heights: 5mm, 5.5mm, and 8mm
Height Above Board: 0.169" (4.30mm)
MSL Level: 1 (unlimited)
HTSUS Code: 8536.69.4040
Base Product Number: AXK6S30547
Status: Active
