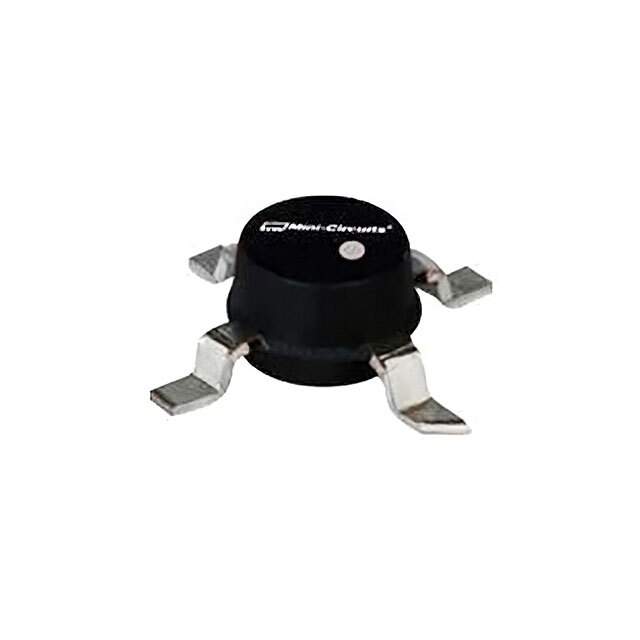

ERA-21SM+ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 0Hz ~ 8GHz
P1dB 12.8dBm
Gain 8.9dB
Noise Figure 5dB
RF Type Cellular, CATV, DBS, PCS, WLAN
Voltage - Supply 3.2V ~ 3.8V
Current - Supply 40mA
Test Frequency 100MHz
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 822711-ERA-21SM+
Ultra Librarian 3D Model Ultra Librarian ERA-21SM+ CAD Model

Description

The 822711-ERA-21SM+ is an RF amplifier designed for a wide range of applications including cellular, CATV, DBS, PCS, and WLAN.

  • It operates @ a frequency range of 0Hz to 8GHz with a gain of 8.9dB.
  • The amplifier has a noise figure of 5dB and a current supply of 40mA.
  • It features a 4-SMD, gull wing package and operates @ a voltage supply of 3.2V to 3.8V.
  • With its active status and reliable performance, this Mini-Circuits RF amplifier is a versatile and efficient component for RF and wireless systems.
