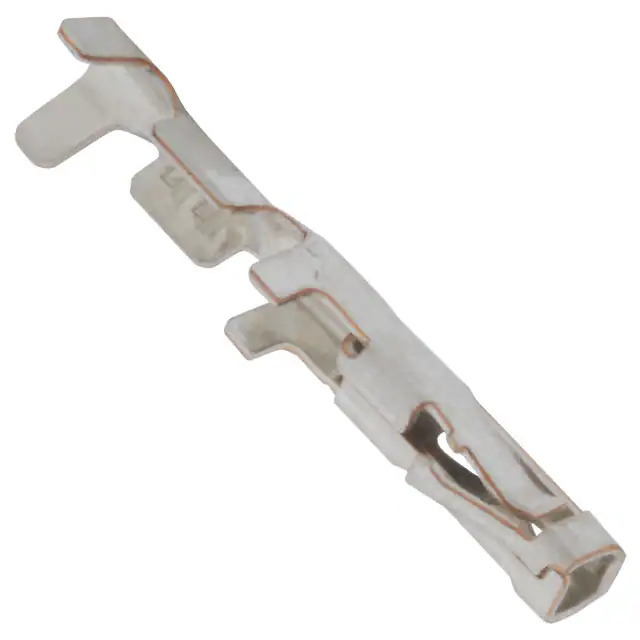

794611-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series Micro MATE-N-LOK
Package Bulk
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 26-30 AWG
Contact Finish Tin
Contact Finish Thickness 59.0µin (1.50µm)
Base Product Number 794611
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363116-794611-1
Ultra Librarian 3D Model Ultra Librarian 794611-1 CAD Model

Description

The TE Connectivity AMP Connectors Micro MATE-N-LOK series offers a stamped rectangular socket contact.

  • Series: Micro MATE-N-LOK
  • Termination: Crimping
  • Wire Gauge: 26-30 AWG
  • Contact Finish: Tin
  • Finish Thickness: 59.0µin (1.50µm)
  • Packaging: Bulk
  • Product Status: Active
  • Base Product Number: 794611
  • HTSUS: 8536.90.4000
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
  • REACH Status: Vendor Undefined
