Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Microchip Technology
Series Hyper Speed Control, SuperSwitcher II
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 0.9V, 1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V
Output Current 12A
Voltage - Input 4.5 V ~ 26 V
Regulator Topology Buck
Frequency - Switching 300kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part MIC26950
Win Source Part Number 788535-MIC26950YJL-EV
Popularity Medium
Supply and Demand Status Limited
Family Name MIC26950
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian MIC26950YJL-EV CAD Model

Description

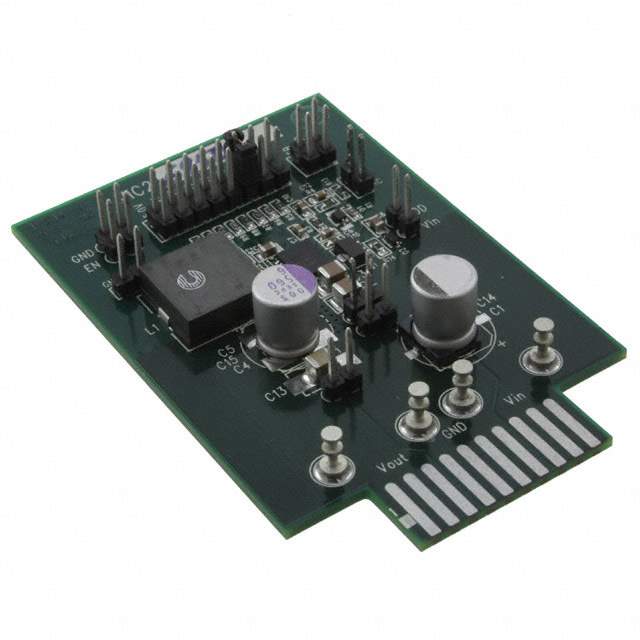

The MIC26950YJL-EV from Microchip Technology is a state-of-the-art evaluation board designed for engineers and developers who need to assess the capabilities and performance of the MIC26950, a high-efficiency, synchronous step-down regulator module. This evaluation platform is an essential tool for testing the operational parameters of the regulator, ensuring it meets the specific requirements of your power management applications.

The MIC26950YJL-EV board showcases the MIC26950 in a compact, easy-to-use package, offering a wide input voltage range from 4.5V to 26V and supporting load currents up to 50A. With its exceptional power density, the MIC26950 module is well-suited for a variety of demanding applications including telecommunications, networking, and industrial systems.

Key features of the MIC26950YJL-EV include:

  • High Efficiency: The synchronous step-down regulator provides high conversion efficiency, which is crucial for reducing power loss and improving system performance.
  • Adjustable Output Voltage: Users can easily adjust the output voltage from 0.8V to 5.5V to match the needs of their specific application.
  • Thermal Management: The evaluation board includes an integrated heat sink that aids in heat dissipation, ensuring the module operates within its temperature range even under full load conditions.
  • Protection Features: The MIC26950 module comes with over-current protection, over-temperature protection, and under-voltage lockout, safeguarding your system from potential damage.
  • Easy Integration: The evaluation board is designed for straightforward integration into existing systems, with convenient test points and connectors for comprehensive evaluation.

Whether you are developing power supplies, optimizing energy consumption, or testing the limits of your power designs, the MIC26950YJL-EV evaluation board is an invaluable asset for your development toolkit. With its robust design and versatile features, it provides a reliable platform for thoroughly evaluating the MIC26950 module's performance before deploying it in your final product.
