Products specifications

Category Integrated Circuits (ICs) - Interface - Analog Switches - Special Purpose
Mfr onsemi
Series -
Package Tape & Reel
Product Status Active
Applications DisplayPort, PCIe, Telecommunications, USB
Switch Circuit SPDT
Number of Channels 10
On-State Resistance (Max) 9Ohm
Voltage - Supply, Single (V+) 1.5V ~ 5V
Voltage - Supply, Dual (V±) -
-3db Bandwidth 4GHz
Features Break-Before-Make
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 36-XFBGA, WLCSP
Supplier Device Package 36-WLCSP (2.06x2.06)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1370751-FSA636UCX
Ultra Librarian 3D Model Ultra Librarian FSA636UCX CAD Model

Description

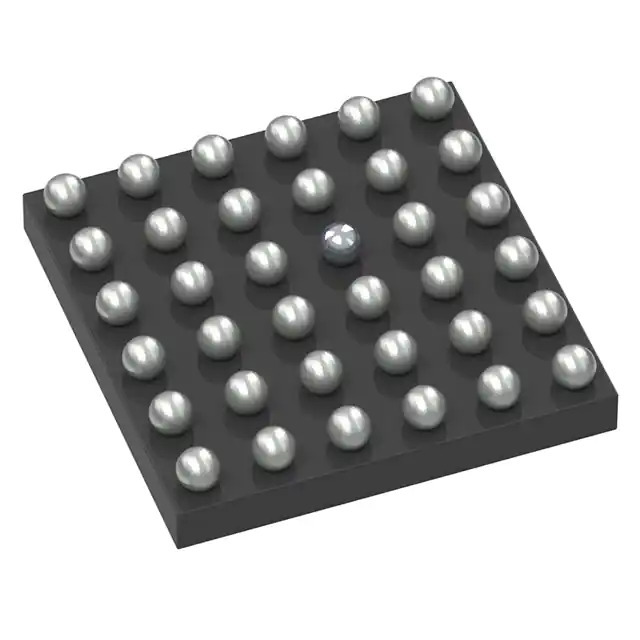

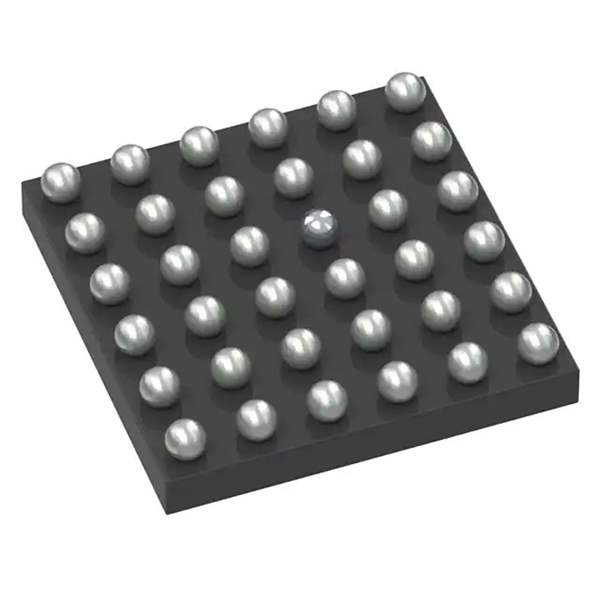

Introducing the FSA636UCX from ON Semiconductor

The FSA636UCX is a state-of-the-art mobile audio accessory switch designed by ON Semiconductor, one of the industry leaders in semiconductor-based solutions. This innovative product is tailored to address the needs of the modern mobile communications market, where multifunctionality and high performance are paramount.

Key Features

  • High-Definition Audio: The FSA636UCX supports high-definition audio signals, ensuring crystal-clear sound quality for an enhanced audio experience.
  • Low On-Resistance: With an exceptionally low on-resistance (RON), this switch ensures minimal signal distortion and loss, providing a more authentic sound reproduction.
  • Advanced Switching Capabilities: It features complex switching functions that allow users to seamlessly switch between audio and USB data signals, making it ideal for multifunctional devices.
  • Compatibility: The FSA636UCX is designed to be compatible with a wide range of mobile devices, including smartphones, tablets, and portable media players.
  • Power Efficiency: ON Semiconductor places a strong emphasis on power efficiency, and the FSA636UCX is no exception. Its design ensures low power consumption, which is crucial for battery-powered devices.

Applications

The FSA636UCX is versatile and can be used in various applications, such as:

  • Audio signal routing in mobile phones
  • USB 2.0 High-Speed data multiplexing
  • Headset detection and configuration
  • Accessory identification

Technical Specifications

ON Semiconductor's FSA636UCX comes with a range of technical specifications that make it a robust choice for designers and engineers:

  • USB 2.0 High-Speed (480 Mbps) and audio signal switching
  • Low crosstalk and off-isolation at -35 dB
  • Wide operating temperature range: -40°C to +85°C
  • Micro packaging options for space-constrained applications

With the FSA636UCX, ON Semiconductor continues its legacy of providing innovative solutions that enhance the user experience while addressing the technical demands of modern mobile communications technology. Whether you are designing the next generation of smartphones or creating accessories that require reliable audio and data switching, the FSA636UCX is a component that will meet and exceed your expectations.
