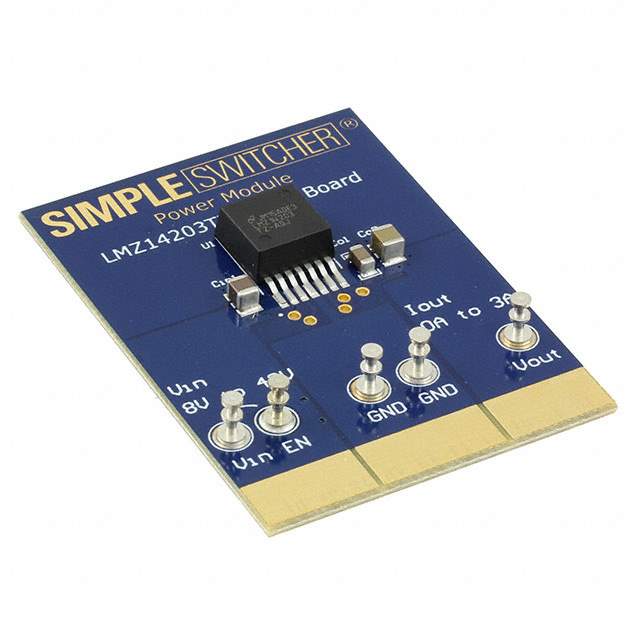

The LMZ14203DEMO/NOPB is a high-performance power module from Texas Instruments, designed to simplify the process of building a reliable power supply. This product is a demonstration board that showcases the capabilities of the LMZ14203 power module, a component that can deliver up to 3A of output current with exceptional power conversion efficiency.

Key Features

• Output Voltage Range: The LMZ14203 power module offers an adjustable output voltage range from 0.8V to 6V, making it suitable for a wide variety of applications.
• High Efficiency: With an efficiency of up to 95%, this module ensures minimal heat generation and is ideal for use in thermally sensitive applications.
• Integrated Shielding: The module includes integrated shielding to minimize radiated emissions, ensuring compliance with EMC regulations.
• Easy-to-Use: The demonstration board is designed for easy evaluation, featuring pre-configured settings and requiring minimal external components for operation.
• Wide Input Voltage Range: Capable of handling input voltages from 6V to 42V, the LMZ14203 is versatile and can be used in various systems without the need for additional voltage regulation.

Applications

The LMZ14203DEMO/NOPB is suitable for a variety of applications, including but not limited to:

• Industrial control systems
• Telecommunications equipment
• Automotive infotainment and telematics
• Point-of-load power supplies
• Networking equipment such as routers and switches

Design and Support

The LMZ14203DEMO/NOPB comes with comprehensive design support from Texas Instruments, including detailed datasheets, reference designs, and simulation tools. TI's extensive online resources and customer support make it easier for engineers to integrate the module into their designs, reduce time-to-market, and ensure product reliability.

Quality and Reliability

As with all Texas Instruments products, the LMZ14203DEMO/NOPB is manufactured to the highest quality standards, ensuring robust performance and longevity in the field. This demonstration board is a testament to TI's commitment to providing innovative and reliable power solutions to meet the demands of modern electronic systems.
