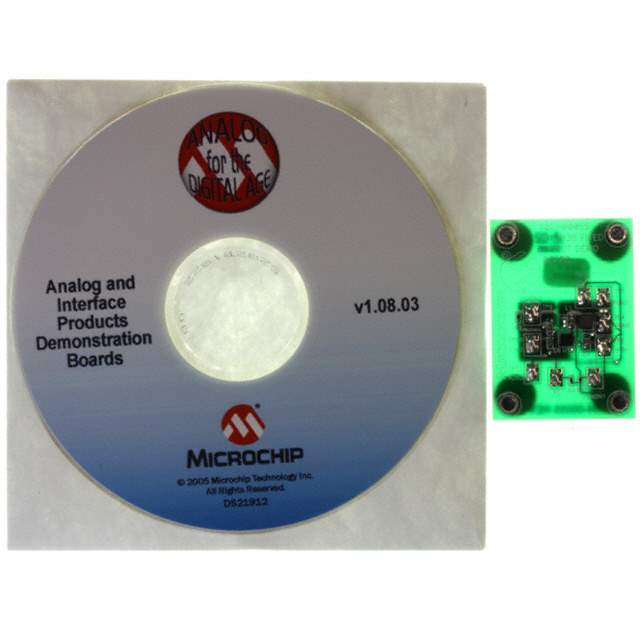

The TC1303BDM-DDBK1 is a high-performance, feature-rich power management integrated circuit (PMIC) developed by Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions. This device combines a synchronous buck regulator (also known as a step-down converter) with a Low Dropout regulator (LDO) to provide two highly efficient, compact power outputs.

Key Features

• Synchronous Buck Regulator: The integrated buck regulator is capable of delivering up to 500 mA of continuous current with high efficiency, which is ideal for applications requiring a lower voltage derived from a higher voltage input.
• Low Dropout Regulator: Accompanying the buck regulator is an LDO that can supply up to 300 mA of output current. This regulator is perfect for powering sensitive analog or RF circuits that require a clean, stable supply voltage.
• High Efficiency: The TC1303BDM-DDBK1 is designed to maximize efficiency, which helps in reducing power consumption and heat generation, thereby extending battery life in portable applications.
• Variable Output Voltage: Both the buck regulator and the LDO can be configured for different output voltages, making this device highly versatile for various design requirements.
• Power-Saving Modes: The device includes power-saving features such as automatic switching between PWM and PFM modes to optimize efficiency based on load conditions.
• Thermal Protection: Over-temperature protection is built-in to safeguard the device under extreme operating conditions.
• Small Footprint: The TC1303BDM-DDBK1 comes in a small, space-saving package, which is crucial for compact and integrated circuit designs.

Applications

The versatility of the TC1303BDM-DDBK1 makes it suitable for a wide range of applications, including but not limited to:

• Portable Devices
• Smart Wearables
• Wireless Networking Devices
• IoT Applications
• Power Supply Modules

With its impressive mix of efficiency, power, and compact size, the TC1303BDM-DDBK1 from Microchip Technology is an ideal solution for designers looking to optimize their power management systems in a variety of electronic products.
