Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Digital to Analog Converters (DACs)
Mfr Microchip Technology
Package Box
Number of DAC's 1
Number of Bits 12
Sampling Rate (Per Second) 100k ~ 3.4M
Data Interface I2C
Settling Time 6 µs
DAC Type Voltage
Supplied Contents Board(s)
Utilized IC / Part MCP4725
Base Product Number MCP4725
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A992A
HTSUS 8473.30.1180
Standard Package 1
Win Source Part Number 982401-MCP4725DM-PTPLS
Ultra Librarian 3D Model Ultra Librarian MCP4725DM-PTPLS CAD Model

Description

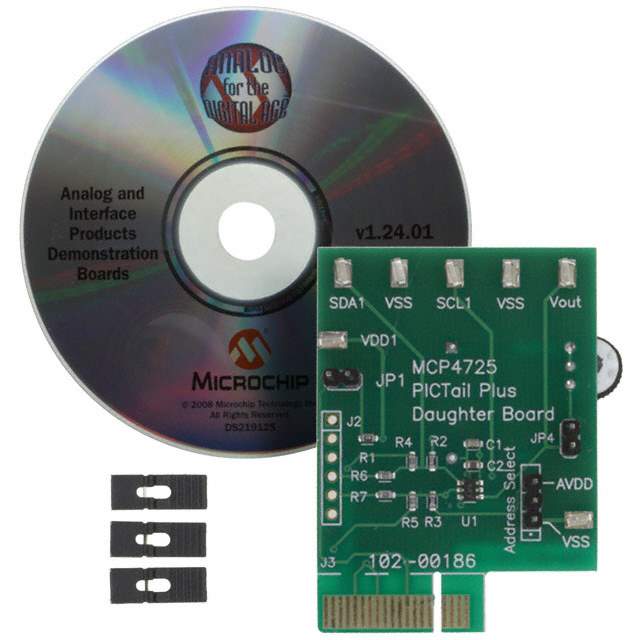

Microchip Technology MCP4725DM-PTPLS Overview

The MCP4725DM-PTPLS is a compact, high-performance Digital-to-Analog Converter (DAC) module from Microchip Technology, renowned for its precision and ease of use in various electronic applications. This product is designed to convert digital values to analog signals with high accuracy, making it an essential component for applications that require precise voltage control.

Featuring a 12-bit resolution, the MCP4725DM-PTPLS offers fine granularity in its output, allowing for smooth and precise control of analog voltages. This makes it particularly suitable for applications such as adjustable power supplies, signal generation, and calibration systems where precise voltage adjustments are necessary.

One of the key advantages of this DAC module is its I2C interface, which enables easy communication with most microcontrollers and processors. This interface allows for simple integration into existing designs, reducing development time and complexity. Additionally, the MCP4725DM-PTPLS supports a standard (100 kHz), fast (400 kHz), and high-speed (3.4 MHz) I2C communication, providing flexibility for various system requirements.

The module also includes an onboard, non-volatile memory (EEPROM) that can store DAC register and configuration bit settings. This feature ensures that the device retains the desired settings even after power cycling, enabling a quick start-up to the last known state without the need for reconfiguration.

Designed for a wide operating voltage range, the MCP4725DM-PTPLS can function effectively within a 2.7V to 5.5V supply, accommodating diverse power environments. Its compact form factor and low power consumption make it ideal for portable and battery-operated devices, as well as for space-constrained applications.

In summary, the MCP4725DM-PTPLS from Microchip Technology is a versatile and reliable DAC solution that promises high precision and ease of use for designers and engineers looking to incorporate analog voltage control into their projects.
