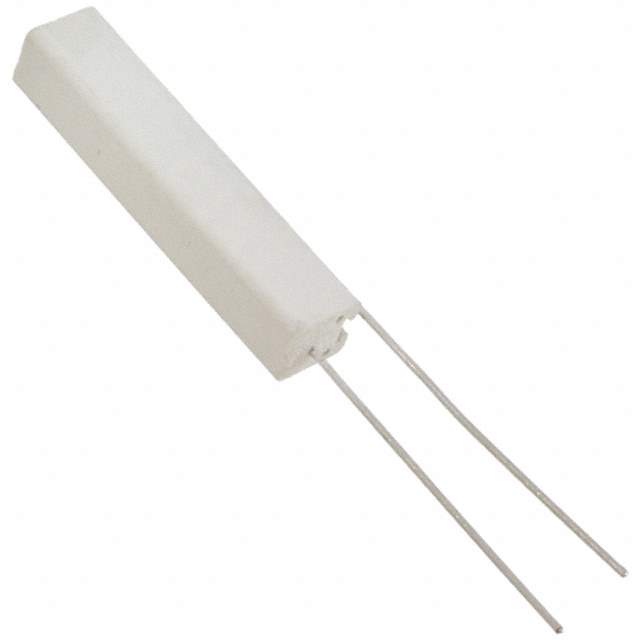

SBCHE610RJ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr TE Connectivity Passive Product
Series SBC, CGS
Package Bulk
Resistance 10 Ohms
Tolerance ±5%
Power (Watts) 7W
Composition Wirewound
Features Flame Proof, Safety
Temperature Coefficient ±400ppm/°C
Temperature Range - Operating -55°C ~ 350°C
Package / Case Axial, Radial Formed
Size / Dimension 0.315" x 0.276" Rectangular x 1.496" L (8.00mm x 7.00mm x 38.00mm)
Number of Terminations 2
Base Product Number SBCHE6
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1337406-SBCHE610RJ
Ultra Librarian 3D Model Ultra Librarian SBCHE610RJ CAD Model

Description

The SBCHE610RJ resistor is a flame-proof and safety resistor manufactured by TE Connectivity Passive Product.

  • Resistance: 10 Ohms
  • Tolerance: ±5%
  • Resistor Type: Wirewound
  • Power Rating: 7W
  • Temperature Coefficient: ±400ppm/°C
  • Package/Case: Axial, Radial Formed
  • Size: 0.315" x 0.276" Rectangular x 1.496" L (8.00mm x 7.00mm x 38.00mm)
  • Temperature Range: -55°C ~ 350°C
