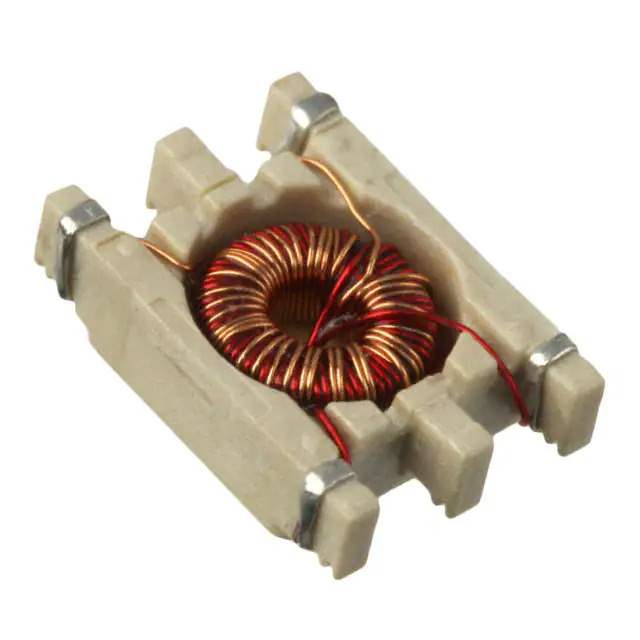

PE-68386NL Real Image
Same model may have multiple batches, images only for reference.

PE-68386NL

Part No PE-68386NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1 785UH / 785μH Pulse Transformer 1:1 Surface Mount
Datasheet
PE-68386NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Inductance 785µH
ET (Volt-Time) 9.7VµS
Mounting Type Surface Mount
Size / Dimension 0.340" L x 0.265" W (8.64mm x 6.73mm)
Height - Seated (Max) 0.098" (2.49mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 85 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 654200-PE-68386NL
Ultra Librarian 3D Model Ultra Librarian PE-68386NL CAD Model

Description

The 654200-PE-68386NL is a pulse transformer from the Transformers - Pulse Transformers category.

  • Package: Tube
  • Standard Package: 85 pieces
  • Size or Dimension: 0.340" L x 0.265" W (8.64mm x 6.73mm)
  • Type: Transformer without a specified type
  • Inductance: 785µH
  • Maximum Seated Height: 0.098" (2.49mm)
  • Operating Temperature: -40°C to 130°C
  • Manufacturer: Pulse
  • ET (Volt-Time): 9.7VµS
  • REACH: Not affected
