Products specifications

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 47μF
Tolerance ±20%
Voltage Rating 10V
Type Molded
ESR 1.8 Ohm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.083" (2.11mm)
Manufacturer Size Code B
Features General Purpose
Win Source Part Number 075300-293D476X0010B2TE3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 293D476X0010B2TE3 CAD Model

Description

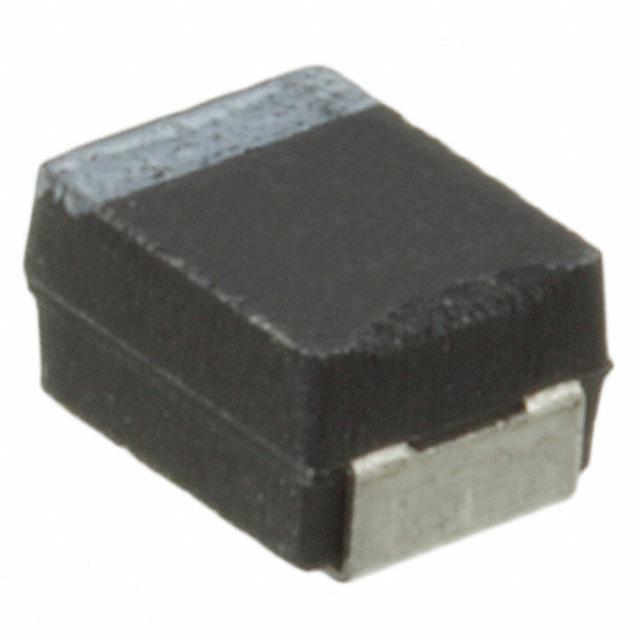

The 293D476X0010B2TE3 tantalum capacitor offers robustness and efficiency with a capacitance of 47μF and a 10V rating, well-suited for diverse electronic circuits.

Features & Benefits:

  • High capacitance in a small form factor
  • Excellent temperature stability
  • Low ESR for high current capability
  • Long lifespan with high reliability

Applications:

  • DC-DC converters
  • Telecommunication equipment
  • Audio devices
  • Automotive electronics

The 293D476X0010B2TE3 is designed to meet the demands of high-frequency switching and is ideal for miniaturized applications requiring reliable performance.
