Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Configuration Proms for FPGAs
Mfr Microchip Technology
Package Tube
Programmable Type FLASH
Memory Size 16Mb
Voltage - Supply 2.97V ~ 3.63V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount

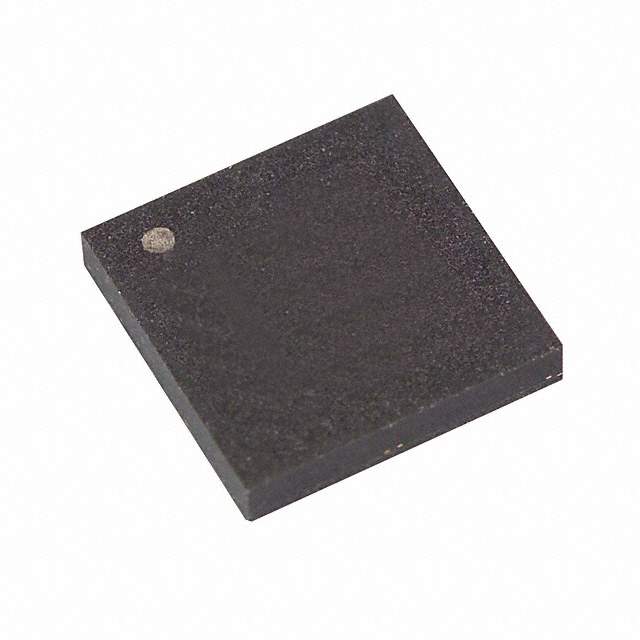

Package / Case 8-TDFN
Supplier Device Package 8-LAP (6x6)
Base Product Number AT17F16
Standard Package 83
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1342493-AT17F16A-30CU
Ultra Librarian 3D Model Ultra Librarian AT17F16A-30CU CAD Model

Description

Product Overview: AT17F16A-30CU from Microchip Technology

The AT17F16A-30CU is a high-performance, serial-configurable Field Programmable Gate Array (FPGA) configuration EEPROM produced by Microchip Technology, a leader in microcontroller, mixed-signal, analog, and Flash-IP solutions. This device is specifically designed to configure Microchip's own FPGA devices, ensuring a reliable and efficient programming experience for advanced digital systems.

Key Features:

  • Memory Size: The AT17F16A-30CU boasts a 16-Megabit memory size which is ample for storing complex FPGA configurations.
  • Speed: With a clock frequency of 30 MHz, this EEPROM provides rapid configuration of FPGAs, minimizing system boot time.
  • Package: The device comes in a compact 8mm x 6.7mm, 8-lead CERPACK package, making it suitable for space-constrained applications.
  • Interface: It utilizes a simple serial interface for communication, which reduces the number of I/O pins needed on the FPGA for configuration, thereby freeing up resources for other uses.
  • Supply Voltage: Operating with a supply voltage ranging from 3V to 3.6V, the AT17F16A-30CU is designed for low-power operations.
  • Security: The device features security mechanisms that prevent unauthorized access to the FPGA configuration data, thereby ensuring design protection.

Applications:

The AT17F16A-30CU is ideal for a wide range of applications that require FPGA-based solutions, including but not limited to telecommunications, automotive systems, industrial control, medical devices, and defense and aerospace systems. Its robust design and ease of use make it a go-to choice for engineers and designers looking to reduce development time and enhance system reliability.

Why Choose the AT17F16A-30CU?

When it comes to FPGA configuration, the AT17F16A-30CU from Microchip Technology stands out for its combination of high memory capacity, fast configuration times, and secure operation. The device's compatibility with Microchip's FPGA line simplifies the design process, allowing for a seamless integration into various electronic systems. Whether you are working on a complex, multi-functional system or a straightforward digital application, the AT17F16A-30CU offers a reliable and efficient solution for your FPGA configuration needs.
