Maxim Integrated MAX8971EWP+ Power Management IC

The MAX8971EWP+ from Maxim Integrated is a high-efficiency, high-performance, power management integrated circuit (PMIC) designed to cater to the demanding needs of portable devices. This versatile IC is engineered to provide a reliable charging solution for single-cell lithium-ion (Li+) batteries with the added benefits of reduced heat generation and enhanced safety features.

One of the standout features of the MAX8971EWP+ is its ability to support a wide range of input voltages, making it suitable for use with various USB sources, including standard USB, USB On-The-Go, and other higher voltage sources. Its flexibility is further enhanced by its programmable charge current, which can be set from 100mA to 2A, allowing for fast charging capabilities that can adapt to the needs of different battery capacities and sizes.

The device boasts an impressive array of safety features to protect both the battery and the device. These include overvoltage protection, which guards against input surges, and a battery temperature monitoring function that ensures the battery remains within a safe operating temperature range during charging. Additionally, the MAX8971EWP+ features a charge timer and JEITA battery temperature monitoring for an added layer of safety, ensuring that the charging process is halted in the event of abnormal conditions.

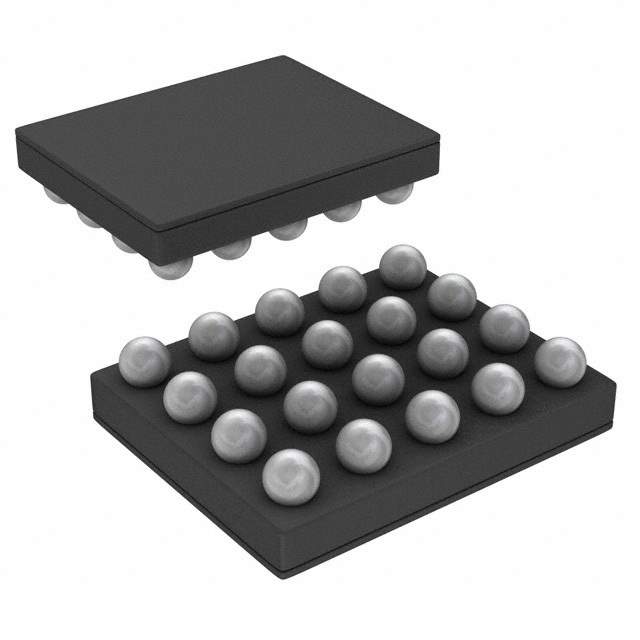

Another key advantage of the MAX8971EWP+ is its compact size. The power management IC comes in a small, 20-pin WLP package, making it an ideal solution for space-constrained applications such as smartphones, tablets, wireless headphones, and other portable electronics. Despite its small footprint, it does not compromise on performance, offering up to 93% charging efficiency, which helps to minimize power loss and keep devices cooler during operation.

In summary, the MAX8971EWP+ from Maxim Integrated is a feature-rich power management solution that provides fast, efficient, and safe charging for portable devices. Its wide input voltage range, programmable charge current, and comprehensive safety features make it a top choice for designers looking to enhance the power management capabilities of their next-generation portable electronics.
