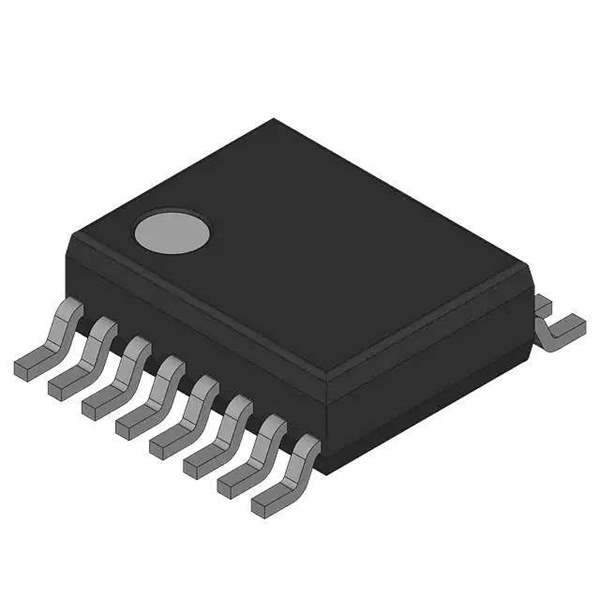

The MAX4563CEE from Maxim Integrated is a high-performance, low-voltage, CMOS analog multiplexer (mux)/demultiplexer (demux) with a single-ended configuration. This versatile component is designed to operate in a variety of systems that require precise and efficient switching of analog or digital signals. Its compact and efficient design makes it an ideal choice for portable and space-constrained applications.
Featuring a wide voltage range, the MAX4563CEE operates with a single +1.8V to +5.5V supply, or with dual ±2.7V to ±5.5V supplies, providing designers with flexibility in various circuit designs. The device boasts low power consumption, which is critical for battery-powered devices, and its low on-resistance (Ron) ensures minimal signal distortion during switching.
The MAX4563CEE comes in a 16-pin QSOP package, providing a compact footprint while allowing for a temperature range of -40°C to +85°C, making it robust enough for industrial applications. The device features break-before-make switching action, which prevents momentary shorting when switching channels. Additionally, its high off-isolation and crosstalk rejection ratios ensure that signals are cleanly and accurately routed without interference from one channel to another.
With an ESD tolerance of ±2000V, the MAX4563CEE is designed to withstand electrostatic discharges, providing reliability and durability in environments where ESD events are a concern. The device is also TTL/CMOS logic compatible, which allows for easy integration into digital systems.
Applications for the MAX4563CEE are diverse and include signal routing in audio and video equipment, communication systems, data acquisition systems, and medical equipment. Its precision and low power attributes make it particularly well-suited for handheld and portable devices where power efficiency and space are at a premium.
In summary, the MAX4563CEE from Maxim Integrated is a versatile, efficient, and reliable solution for analog signal switching, offering designers a high-quality component for their multiplexing and demultiplexing needs in various electronic systems.
