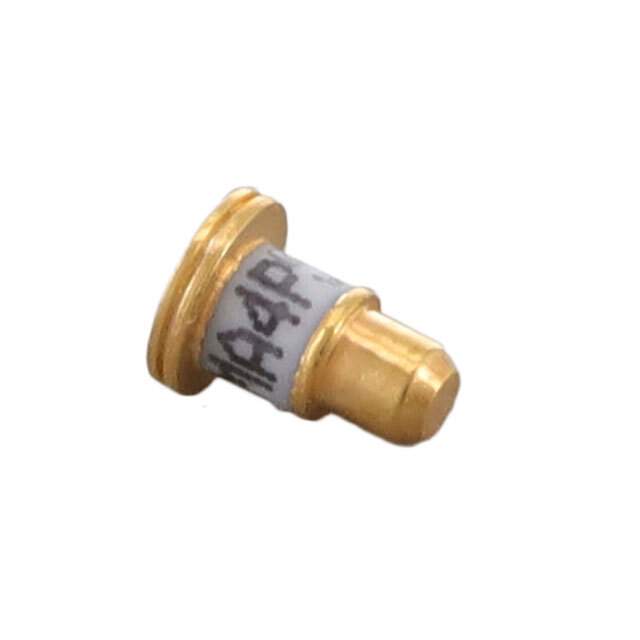

MA4P505-36 Real Image
Same model may have multiple batches, images only for reference.

MA4P505-36

Part No MA4P505-36
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description CERAM PKG PINS,ODS36 / RF Diode PIN - Single 500V 15 W ODS-36
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr MACOM Technology Solutions
Package Tray
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 500V
Capacitance @ Vr, F 0.65pF @ 100V, 1MHz
Resistance @ If, F 450mOhm @ 100mA, 100MHz
Power Dissipation (Max) 15 W
Temperature Range - Operating -65°C ~ 175°C
Package / Case Stud
Supplier Device Package ODS-36
Base Product Number MA4P505
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0060
Other Names 1465-MA4P505-36
Standard Package 50
Win Source Part Number 1199455-MA4P505-36
Ultra Librarian 3D Model Ultra Librarian MA4P505-36 CAD Model

Description

The MA4P505-36 is a PIN-single diode manufactured by MACOM Technology Solutions.

  • Capacitance @ Vr, F: 0.65pF @ 100V, 1MHz
  • Voltage-Peak Reverse (Max): 500V
  • Power Dissipation (Max): 15W
  • Resistance @ If, F: 450mOhm @ 100mA, 100MHz
  • Supplier Device Package: ODS-36
