Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Linear Technology
Packaging Tray
Function Direct Conversion Subsystem
Frequency 700MHz ~ 2.7GHz
RF Type General
Secondary Attributes 4.42MHz Low Pass Filter
Package 204-BLGA
Manufacturer Package 204-LGA (22x15)
Win Source Part Number 784664-LTM9004CV-AB#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LTM9004
Introduction Date December 02, 2009
ECCN 5A991.b
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LTM9004CV-AB#PBF CAD Model

Description

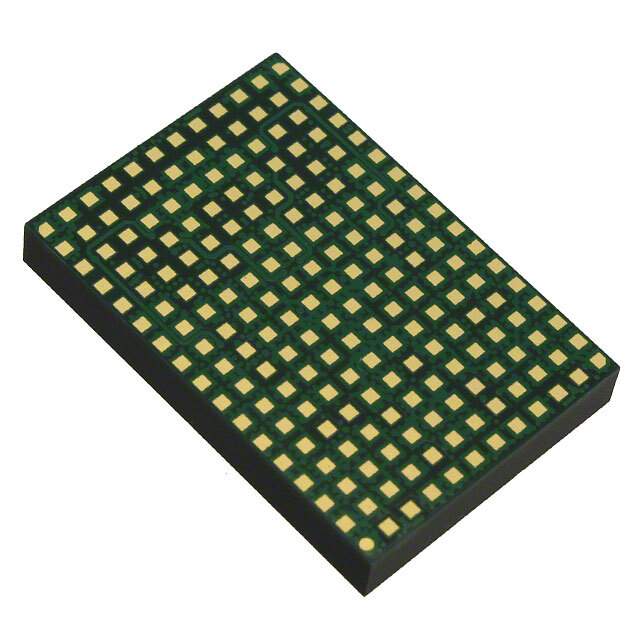

The LTM9004CV-AB#PBF is a high-performance, integrated data acquisition system from Linear Technology, designed to offer a complete solution for digitizing high-frequency, wide dynamic range signals with minimal design effort. This system-on-a-chip (SoC) is part of Linear Technology's µModule® (micro-module) series, which encapsulates several signal processing and conditioning blocks in a compact, shielded, surface-mount package.

Key Features

  • Integrated ADC: The core of the LTM9004CV-AB#PBF is a high-speed 14-bit analog-to-digital converter (ADC) that ensures accurate conversion of analog signals into digital data, making it ideal for applications such as wireless communication, medical imaging, and test equipment.
  • High Sampling Rate: With a sampling rate of up to 125Msps (mega samples per second), this product can handle high-frequency signals without compromising the integrity of the data.
  • Wide Input Bandwidth: The device features an input bandwidth that supports a variety of signal types, accommodating the needs of different high-speed data acquisition systems.
  • Signal Chain Integration: The LTM9004CV-AB#PBF integrates an ADC driver, a low-pass filter, and a fixed gain differential amplifier, streamlining the design process and reducing the bill of materials for the end system.
  • Easy to Use: The module's design simplifies the PCB layout process, as it minimizes the number of external components and interconnects required, reducing potential sources of noise and signal interference.
  • Robust Packaging: Enclosed in a compact LGA (land grid array) package, the LTM9004CV-AB#PBF is engineered for durability and reliability in a variety of environmental conditions.

Applications

The versatility of the LTM9004CV-AB#PBF makes it suitable for a wide range of applications, including:

  • Wireless and Wired Broadband Communication
  • Radar and Satellite Subsystems
  • Medical Imaging Systems
  • Industrial Instrumentation
  • High-Speed Data Acquisition Systems

In conclusion, the LTM9004CV-AB#PBF from Linear Technology is a powerful, integrated data acquisition system that offers a mix of high performance, ease of use, and robustness, making it an excellent choice for engineers and designers looking to streamline their high-speed signal processing applications.
