The HMC576LC3B is a high-performance, wideband, fully integrated Voltage-Controlled Oscillator (VCO) designed and manufactured by Analog Devices Inc. This VCO operates over a frequency range of 7 GHz to 9 GHz, making it an ideal component for applications requiring a high-frequency source with a compact footprint and excellent phase noise performance.

Key Features

• Frequency Range: The HMC576LC3B operates in the 7 GHz to 9 GHz frequency range, which is suitable for a variety of RF and microwave applications.
• Output Power: It delivers a consistent output power level, providing reliable signal generation for the system in which it is integrated.
• Phase Noise Performance: With excellent phase noise characteristics, this VCO ensures low phase noise contribution to the system, critical for high-performance communication and radar systems.
• Supply Voltage: The device operates on a single supply voltage, simplifying the power supply design and reducing the overall system complexity.

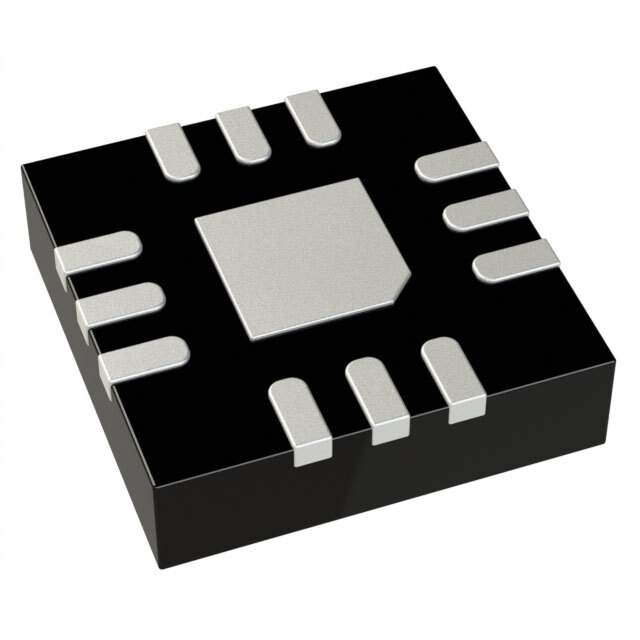

• Form Factor: Housed in a compact 3x3 mm SMT package, the HMC576LC3B is designed for space-constrained applications.
• Integration: The fully integrated VCO design minimizes the need for external components, thus saving board space and reducing BOM costs.

Applications

The HMC576LC3B is versatile and can be used in a variety of applications, including:

• Point-to-Point and Point-to-Multipoint Radios
• Test Equipment and Sensors
• Telecommunications and Satellite Communications
• Military and Space Applications
• Electronic Warfare and Radar Systems

Conclusion

The HMC576LC3B from Analog Devices Inc. is an exemplary solution for designers looking for a high-frequency, low phase noise VCO. Its wide operating frequency range, excellent phase noise performance, and compact size make it a highly attractive option for advanced RF and microwave systems. Analog Devices' commitment to quality ensures that the HMC576LC3B meets the stringent requirements of the most demanding applications.
