Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr APEM Inc.
Series ADTS
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 8.50mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 12.00mm x 12.00mm
Illumination Non-Illuminated
Operating Force 160gf
Features Tactile Feedback
Temperature Range - Operating -25°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.35mm
Base Product Number ADTS2
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
California Prop 65 Warning Information
Win Source Part Number 850378-ADTS25NV
Ultra Librarian 3D Model Ultra Librarian ADTS25NV CAD Model

Description

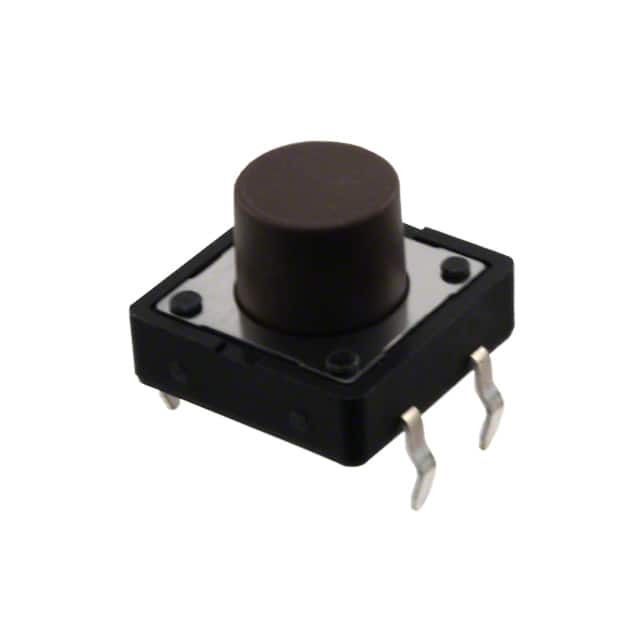

The ADTS Tactile Switch (Part Number: 850378-ADTS25NV) is a high-quality component designed for use in various electronic devices.

  • Termination Style: PC Pin
  • Packaging: 500 pcs
  • Outline: 12.00mm x 12.00mm
  • Circuit: SPST-NO
  • Actuator Type: Standard
  • Switch Travel: 0.35mm
  • Operating Force: 160gf
  • Operating Temperature: -25°C ~ 70°C
  • Mounting Type: Through Hole
  • REACH: Unaffected
  • Manufacturer: APEM Inc.
  • Illumination: None
