Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Linear Technology
Packaging Tube
Type Hot Swap Controller
Number of Channels 1
Internal Switch(s) No
Applications General
Features Auto Retry
Programmable Features Circuit Breaker, Current Limit, Fault Timeout, OVP, Slew Rate, UVLO
Operating Supply Voltage 2.7 V ~ 36 V
Operating Temperature Range 0°C ~ 70°C
Operating Supply Current 4μA
Mounting SMD
Package 12-WFQFN Exposed Pad
Manufacturer Package 12-QFN (3x3)
Feature Pins GNDSW, OV, SENSE, /SHDN, STATUS, TIMER, UVL, UVH
Win Source Part Number 783979-LTC4231CUD-2#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LTC4231
Introduction Date August 01, 2014
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LTC4231CUD-2#PBF CAD Model

Description

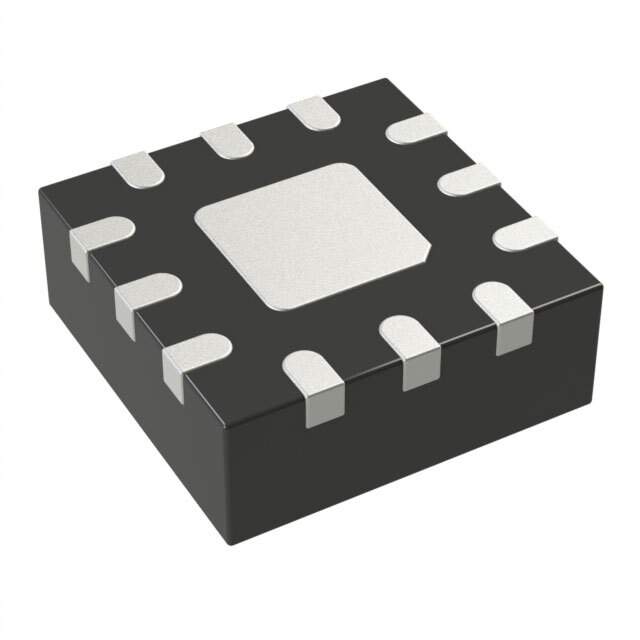

Product Overview: LTC4231CUD-2#PBF

The LTC4231CUD-2#PBF from Linear Technology is a high-performance Hot Swap™ controller that allows a board to be safely inserted and removed from a live backplane. This integrated circuit provides intelligent control of the power to board level components, ensuring both the board and the backplane are protected from the potential damage caused by short circuits, overcurrent, overvoltage, and other fault conditions.

Key Features

  • Adjustable Supply Voltage: The LTC4231 operates over a wide supply voltage range, accommodating various system requirements and ensuring versatility across different applications.
  • Programmable Current Limit: Users can set the overcurrent threshold to match the needs of their specific application, providing precise control over the power distribution system.
  • Fast Overcurrent Protection: The device responds quickly to overcurrent conditions, minimizing the risk of damage to sensitive components on the board.
  • Multi-Function Timer: An onboard timer provides control over fault detection and power-up sequencing, enhancing system reliability.
  • Under Voltage Lockout (UVLO): This feature ensures that the controller remains off if the supply voltage is too low, preventing malfunctioning of the system due to insufficient power.
  • Low Quiescent Current: The LTC4231CUD-2#PBF boasts a low quiescent current, which is ideal for power-sensitive applications.
  • Compact Package: Housed in a 12-pin QFN package, the LTC4231CUD-2#PBF is designed for space-constrained applications.

Applications

The LTC4231CUD-2#PBF is suitable for a wide range of applications, including:

  • Server and Storage Systems
  • Network Routers and Switches
  • Industrial/Telecommunications Equipment
  • Hot Swap Power Supplies

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LTC4231CUD-2#PBF is no exception. The device is manufactured to high standards to ensure reliable performance in demanding environments. It is an ideal solution for designers looking to improve the safety and reliability of their hot-swap systems.
