Same model may have multiple batches, images only for reference.

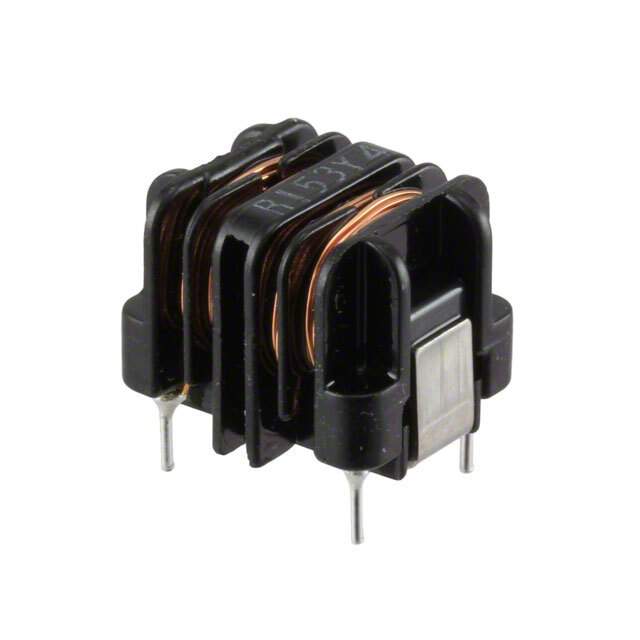

SU10VFC-R15019 Real Image
Same model may have multiple batches, images only for reference.

SU10VFC-R15019

Part No SU10VFC-R15019
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.9 mH @ 1 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 240mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.709" L x 0.610" W (18.00mm x 15.50mm)
Height (Max) 0.591" (15.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU10VF
Other Names 399-10626,UALSU10VR15019
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276497-SU10VFC-R15019
Ultra Librarian 3D Model Ultra Librarian SU10VFC-R15019 CAD Model

Description

The KEMET SU series common mode choke is a power line filter type of choke with a bulk package.

  • Voltage Rating: 250V
  • Current Rating: 1.5A
  • Inductance @ frequency: 1.9 mH @ 1 kHz
  • DC resistance (DCR) (Max): 240mOhm
  • Mounting: Through-hole mountable
  • Package/Case: Vertical, 4 PC pin
  • Operating Temperature: -25°C to 120°C
  • Dimensions: 0.591" (15.00mm) height and 0.709" L x 0.610" W (18.00mm x 15.50mm) dimension
  • Applications: Power supplies, DC-DC converters, and filters
