Same model may have multiple batches, images only for reference.

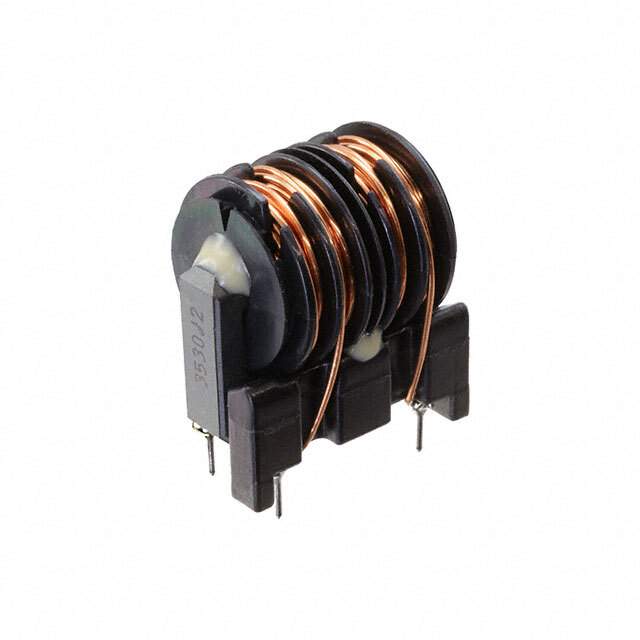

SS30V-350036 Real Image
Same model may have multiple batches, images only for reference.

SS30V-350036

Part No SS30V-350036
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.6 mH @ 1 kHz
Current Rating (Max) 3.5A
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS30V
Other Names 399-SS30V-350036
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276723-SS30V-350036
Ultra Librarian 3D Model Ultra Librarian SS30V-350036 CAD Model

Description

The Kemet SS series common mode choke is a power line filter type with a voltage rating of 250V AC and a current rating of 3.5A.

  • Inductance: 3.6 mH @ 1 kHz
  • DC Resistance (DCR): 100mOhm
  • Package: Tray
  • Mounting: Through hole
  • Dimensions: 1.220" L x 0.886" W (31.00mm x 22.50mm)
  • Height: 1.339" (34.00mm)
  • Temperature Range: -25°C to 120°C
  • Series: SS series
  • Applications: Power line filtering, EMI/RFI suppression, and switching power supplies
