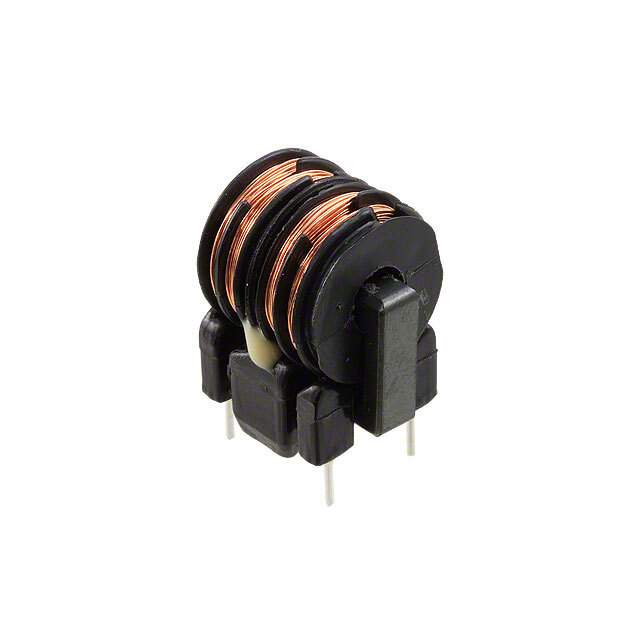

SS21V-250015 Real Image
Same model may have multiple batches, images only for reference.

SS21V-250015

Part No SS21V-250015
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5 mH @ 1 kHz
Current Rating (Max) 2.5A
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.807" L x 0.650" W (20.50mm x 16.50mm)
Height (Max) 1.004" (25.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS21V
Other Names 399-10570
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276799-SS21V-250015
Ultra Librarian 3D Model Ultra Librarian SS21V-250015 CAD Model

Description

The KEMET SS21V-250015 is a common mode choke filter designed for power line filtering applications.

  • Lines: Two-line filter
  • Inductance: 1.5mH @ 1kHz
  • DC Resistance: 100mOhm
  • Voltage Rating (AC): 250V
  • Current Rating: 2.5A
  • Mounting Type: Through Hole
  • Package: Vertical, 4 PC pin
  • Temperature Range: -25°C to 120°C
  • Dimensions: 0.807 inches in length and 0.650 inches in width
  • Packaging: Bulk with 600 units per package
  • ECCN: EAR99
  • REACH: unaffected
