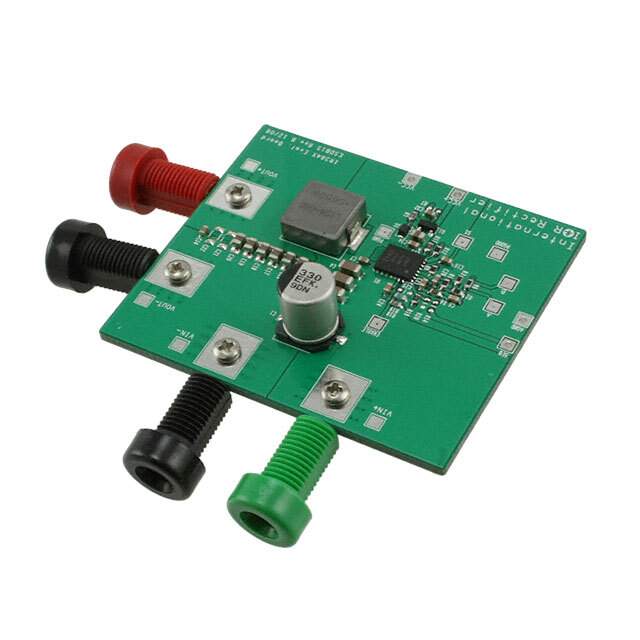

IRDC3840W Real Image
Same model may have multiple batches, images only for reference.

IRDC3840W

Part No IRDC3840W
Manufacturer Infineon Technologies
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Description BOARD EVAL FOR IR3840W 12A CONV / IR3840W DC to DC Converter and Switching Regulator Chip 1.8VDC Output Evaluation Board
Datasheet
IRDC3840W Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Infineon Technologies
Series SupIRBuck
Part Status Obsolete(EOL)
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1.8V
Output Current 12A
Voltage - Input 12V
Regulator Topology Buck
Frequency - Switching 600kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part IR3840W
Win Source Part Number 776987-IRDC3840W
Popularity Medium
Supply and Demand Status Limited
Family Name IRDC3840W
Introduction Date February 10, 2010
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IRDC3840W CAD Model

Description

The manufacturer part number is 776987-IRDC3840W and the Win Source part number is 776987-IRDC3840W.

  • Topology: Buck
  • Voltage Output: 1.8V
  • Voltage Input: 12V
  • Purpose: DC/DC, Step Down
  • Board Type: Fully Populated
  • Output Current: 12A
  • Utilized IC / Part: IR3840W
  • Family Name: IRDC3840W
  • Category: Development Boards, Kits, Programmers
  • Alternative Part Numbers: IRDC3895
  • Introduction Date: February 10, 2010
  • ECCN: EAR99
  • Country of Origin: United States of America
  • Product Status: Obsolete / End of Life
