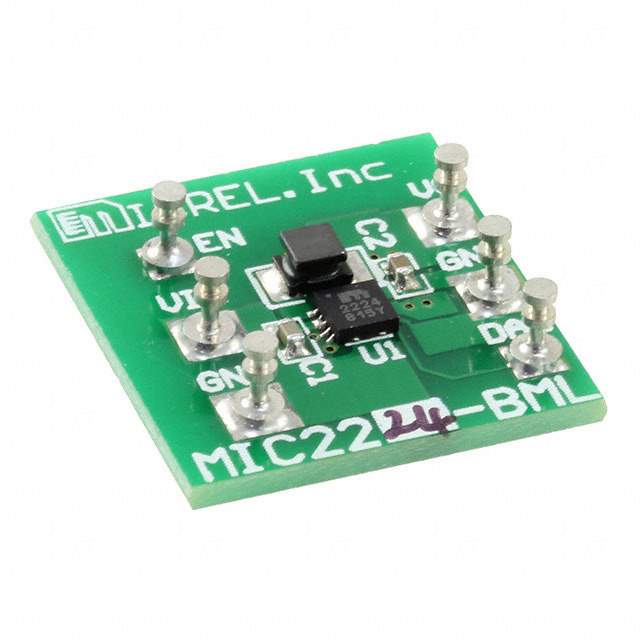

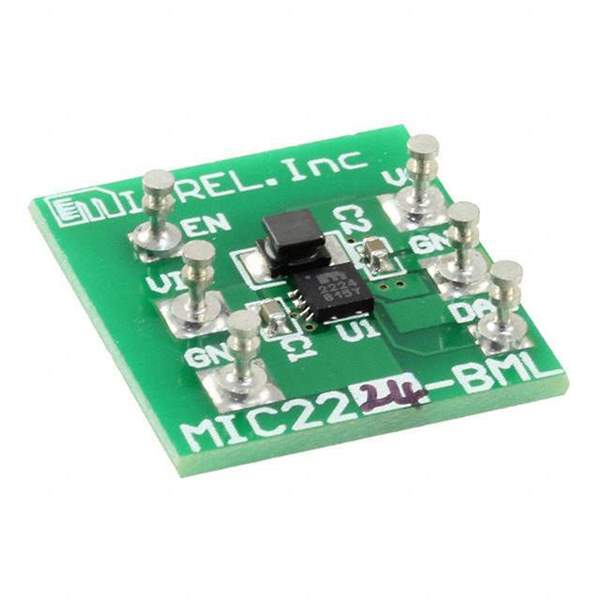

Microchip Technology's MIC2224YML-EV Evaluation Board

The MIC2224YML-EV is a high-performance, compact evaluation board designed by Microchip Technology to demonstrate the capabilities of the MIC2224, a dual 800mA PWM/PFM synchronous buck regulator. This evaluation board provides engineers, designers, and hobbyists an opportunity to test and assess the functionality of the MIC2224 regulator in a convenient and user-friendly package.

Key Features of the MIC2224YML-EV Evaluation Board:

• High Efficiency: The MIC2224YML-EV is built to showcase the MIC2224's high efficiency, which is achieved through its PWM/PFM mode operation, making it suitable for battery-powered applications.
• Dual Channel Output: With two independent 800mA outputs, the board allows simultaneous evaluation of dual regulated voltages, which is ideal for powering multiple loads with different voltage requirements.
• Adjustable Output Voltage: The evaluation board features adjustable output voltage settings, enabling users to tailor the output to their specific needs.
• Thermal Protection: The MIC2224 regulator includes thermal shutdown protection, ensuring the evaluation board remains safe under various operating conditions.
• Over-Current Protection: The built-in over-current protection feature safeguards the device against excessive current draw that could potentially damage the board or the regulator.
• Small Footprint: The MIC2224YML-EV is designed with a small footprint, making it easy to integrate into existing systems without requiring significant space.
• Easy to Use: This evaluation board is user-friendly, with clear markings and accessible test points, facilitating easy measurement and modification for various applications.

Applications:

The MIC2224YML-EV is suitable for a wide range of applications that require efficient power management. This includes portable devices, wireless peripherals, and other low-power consumer electronics where extended battery life and reliable performance are essential.

Conclusion:

Microchip Technology's MIC2224YML-EV evaluation board is an excellent tool for professionals and enthusiasts alike to explore the features and performance of the MIC2224 dual synchronous buck regulator. Its ease of use, combined with its robust protection features, makes it an ideal choice for developing power-efficient solutions in a variety of electronic applications.
