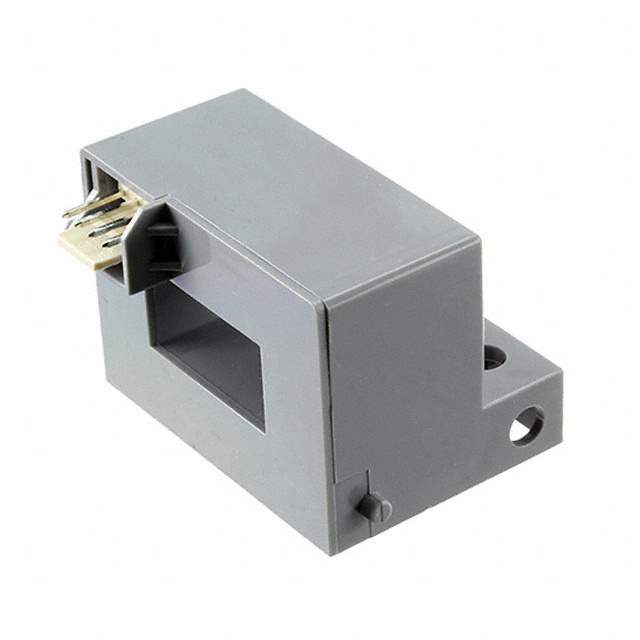

Same model may have multiple batches, images only for reference.

CSCA0400A000B15B01

Name: CSCA0400A000B15B01
Brand: Honeywell
SKU: 1336534
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CSCA0400A000B15B01
Manufacturer	Honeywell
Catalog	Current Transducers
Description	SENSOR CURRENT HALL 400A AC/DC / Current Sensor 400A 1 Channel Hall Effect, Open Loop Bidirectional Module
Datasheet	CSCA0400A000B15B01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Current Sensors
Manufacturer	Honeywell Sensing and Productivity Solutions
Packaging	Bulk
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	400A
Number of Channels	1
Output	Ratiometric, Voltage
Frequency	DC ~ 50kHz
Linearity	±1%
Accuracy	±2%
Voltage - Supply	±15V
Response Time	3µs
Current - Supply (Max)	17mA
Temperature Range - Operating	-10°C ~ 80°C
Polarization	Bidirectional
Mounting	Chassis Mount
Case / Package	Module
Base Product Number	CSCA0400
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8543.70.9860
Standard Package	25
Win Source Part Number	1336534-CSCA0400A000B15B01
Ultra Librarian 3D Model	Ultra Librarian CSCA0400A000B15B01 CAD Model

Description

The Honeywell Sensing and Productivity Solutions CSCA0400A000B15B01 current sensor is a hall effect, open loop type sensor that has a current sensing range of 400A.

Sensor Type: hall effect, open loop
Current Sensing: 400A
Frequency Range: DC to 50kHz
Response Time: 3μs
Output: ratiometric, voltage
Polarization: bidirectional
Maximum Current Supply: 17mA
Voltage Supply: ±15V
Linearity: ±1%
Accuracy: ±2%
Package: module
Operating Temperature: -10°C to 80°C
MSL Level: 1 (Unlimited)
HTSUS: 8543.70.9860
RoHS Compliant: Yes
