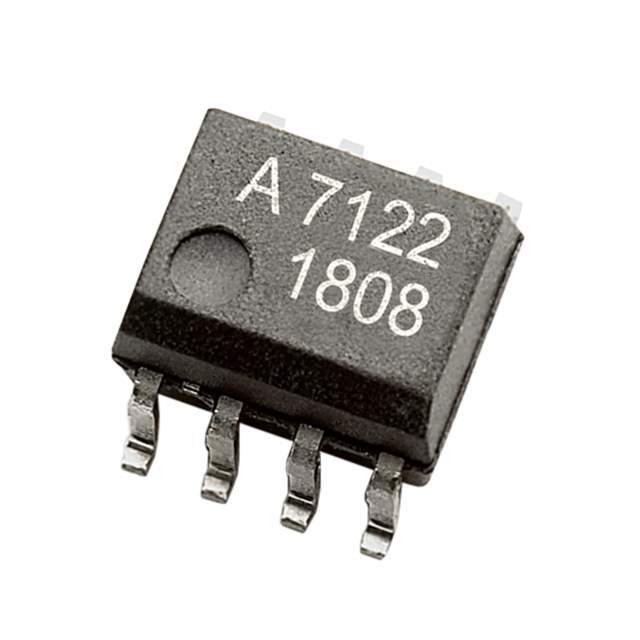

ACHS-7122-000E Real Image
Same model may have multiple batches, images only for reference.

ACHS-7122-000E

Part No ACHS-7122-000E
Manufacturer Broadcom Limited
Catalog Current Transducers
Description HALL EFFECT IC LF / Current Sensor 20A Channel Hall Effect Bidirectional 8-SOIC (0.154", 3.90mm Width)
Datasheet
ACHS-7122-000E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr Broadcom Limited
Package Tube
For Measuring AC/DC
Sensor Type Hall Effect
Current - Sensing 20A
Output Ratiometric, Voltage
Sensitivity 100mV/A
Frequency 80kHz
Linearity ±0.18%
Voltage - Supply 4.5V ~ 5.5V
Response Time 4µs
Current - Supply (Max) 15mA
Temperature Range - Operating -40°C ~ 110°C
Polarization Bidirectional
Mounting SMD (SMT)
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO
Base Product Number ACHS-7122
Other Names 516-4081
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235501-ACHS-7122-000E
Ultra Librarian 3D Model Ultra Librarian ACHS-7122-000E CAD Model

Description

The Broadcom Limited 1235501-ACHS-7122-000E is a current sensor that operates with a response time of 4 microseconds.

  • Output: Bidirectional, Ratiometric, and Voltage
  • For Measuring: AC/DC currents up to 20A
  • Sensitivity: 100mV/A
  • Linearity: ±0.18%
  • Operating Temperature: Between -40°C and 110°C
  • Voltage Supply: 4.5V to 5.5V
  • Mounting: SMD (SMT)
  • Package/Case: 8-SOIC (0.154", 3.90mm Width)
