The TLV3701IDBVR from Texas Instruments is a high-performance, single-channel comparator that offers a multitude of features for a wide range of applications. This device is designed to meet the needs of both low-power and high-speed operation, making it an ideal choice for battery-powered systems, industrial monitoring, and portable devices.

Key Features

• Supply Voltage Range: The TLV3701IDBVR operates over a broad supply voltage range from 2.7V to 16V, allowing for flexibility in various circuit designs and compatibility with both 3.3V and 5V systems.
• Low Power Consumption: With a quiescent current of just 370 µA, the device is optimized for low-power applications, which is crucial for extending the battery life in portable devices.
• High Speed: Despite its low power consumption, the TLV3701IDBVR does not compromise on speed. It boasts a fast response time with a propagation delay of typically 4 µs, ensuring quick and accurate signal processing.
• Push-Pull Output: The comparator features a push-pull output stage that can drive capacitive loads while maintaining low output impedance, thus reducing the need for an external buffer.
• Temperature Range: It is designed to operate over an industrial temperature range of -40°C to 125°C, ensuring reliable performance under varying environmental conditions.

Applications

The TLV3701IDBVR is suitable for a variety of applications, including:

• Portable Electronic Devices
• Battery-Powered Systems
• Window Comparators
• Zero-Crossing Detectors
• Industrial Monitoring Systems
• Signal Conditioning

Package and Quality

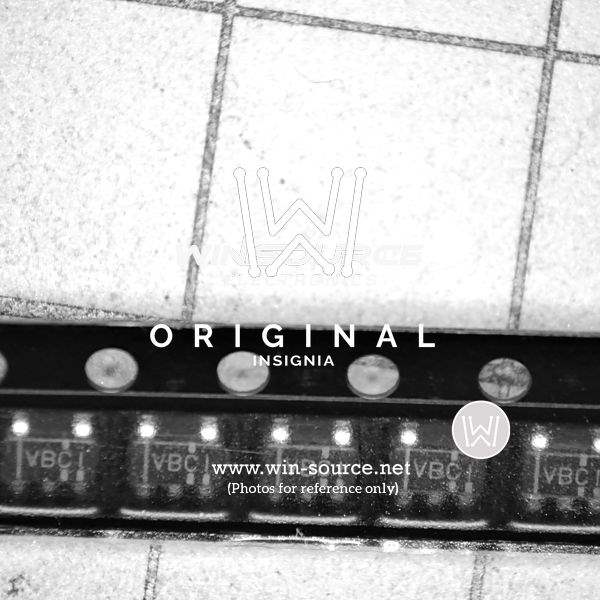

The device comes in a small, 5-pin SOT-23 package, designated as DBVR, which is ideal for space-constrained applications. Texas Instruments is committed to high-quality manufacturing and reliability, and the TLV3701IDBVR is no exception, meeting stringent industry standards for performance and robustness.
