Same model may have multiple batches, images only for reference.

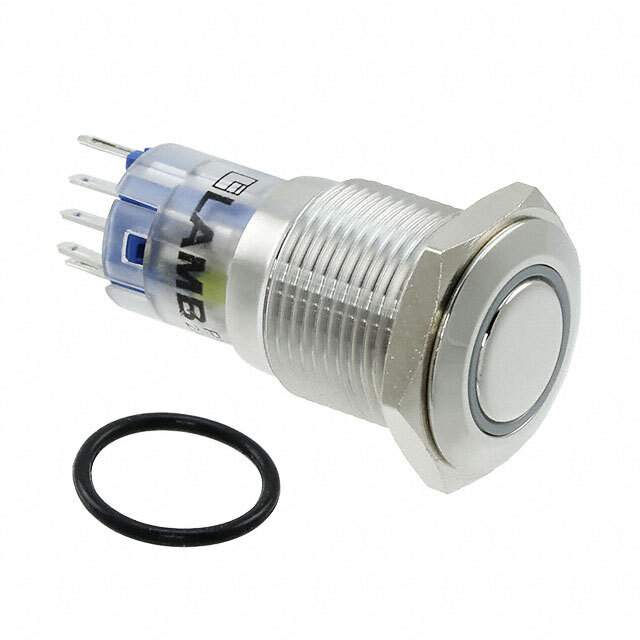

PV3WF2B0SS-3N4 Real Image
Same model may have multiple batches, images only for reference.

PV3WF2B0SS-3N4

Part No PV3WF2B0SS-3N4
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 2A 48V / Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Datasheet
PV3WF2B0SS-3N4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr E-Switch
Series PV3, LAMB
Package Bulk
Mounting Type Panel Mount, Front
Type Anti-Vandal, Illuminated
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 2A (DC)
Voltage Rating - DC 48 V
Actuator Type Round, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap Silver
Illumination Type, Color LED, Blue/Green
Illumination Voltage (Nominal) 12 VDC
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions Circular - 16.00mm Dia
Temperature Range - Operating -20°C ~ 55°C
Mechanical Life 200,000 Cycles
Electrical Life 50,000 Cycles
Base Product Number PV3WF2
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1337053-PV3WF2B0SS-3N4
Ultra Librarian 3D Model Ultra Librarian PV3WF2B0SS-3N4 CAD Model

Description

The PV3WF2B0SS-3N4 switch from E-Switch is a panel mount, front switch with SPDT circuit and On-Mom switch function. The manufacturer of this product is E-Switch.

  • Mounting Type: Panel Mount, Front
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Type: Anti-Vandal, Illuminated
  • Panel Cutout Dimensions: Circular - 16.00mm Dia
  • Voltage Rating - DC: 48VDC
  • Current Rating: 2A (DC)
  • Electrical Life: 50,000 Cycles
  • Mechanical Life: 200,000 Cycles
  • Illumination Type, Color: LED, Blue/Green
  • Illumination Voltage (Nominal): 12VDC
  • Ingress Protection: IP67 - Dust Tight, Waterproof
  • Operating Temperature: -20°C ~ 55°C
  • ECCN: EAR99
  • HTSUS: 8536.50.9031
